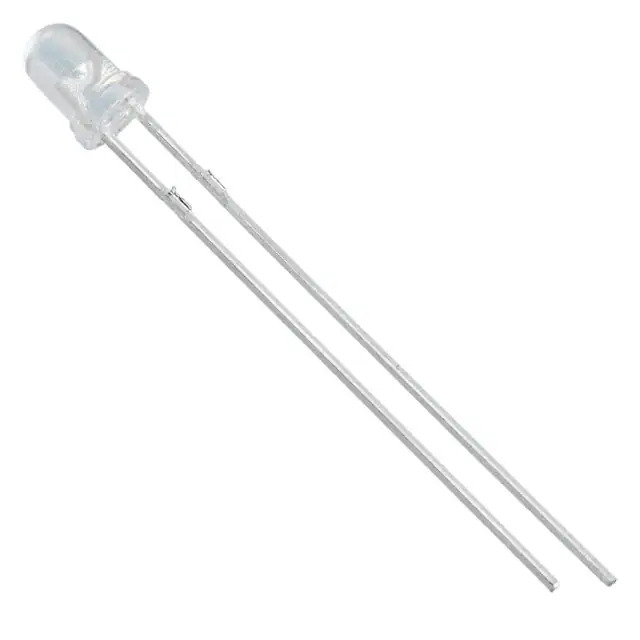

HLMP-Y601-J0000

Part No HLMP-Y601-J0000
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED CLEAR T-1 T/H
Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date Ask for an estimation

Products specifications

Category Optoelectronics - LED Indication - Discrete
Mfr Broadcom Limited
Series -
Package Bulk
Product Status Active
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 680mcd
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 45°
Mounting Type Through Hole
Wavelength - Dominant 627nm
Wavelength - Peak 633nm
Features -
Package / Case Radial
Supplier Device Package T-1
Size / Dimension -
Height (Max) 5.20mm
Base Product Number HLMP-Y601
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1372047-HLMP-Y601-J0000
Fake Threat In the Open Market 58 pct.

Description

The HLMP-Y601-J0000 is a red LED indication device manufactured by Broadcom Limited. It is part of the HLMP series and is designed for use in optoelectronics applications. The LED features a 3mm round with a domed top lens style and a T-1 supplier device package. It has a peak wavelength of 633nm and a dominant wavelength of 627nm. The HLMP-Y601-J0000 has a millicandela rating of 680mcd and operates on a forward voltage of 2V at a test current of 20mA. It has a viewing angle of 45 degrees and a height of 5.20mm. The LED is suitable for a wide range of applications, including signage, displays, and indicator lights. With its compact size and reliable performance, the HLMP-Y601-J0000 is an excellent choice for any project requiring red LED indication.
