Same model may have multiple batches, images only for reference.

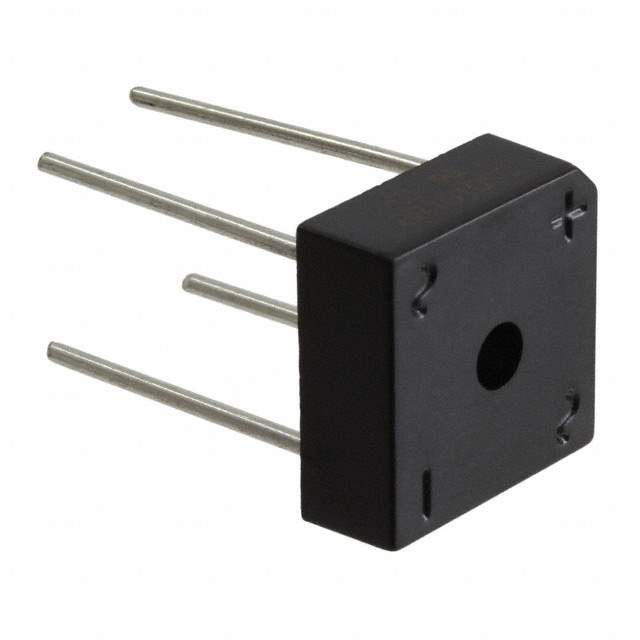

BR1010SG-G Real Image
Same model may have multiple batches, images only for reference.

BR1010SG-G

Part No BR1010SG-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER 10A 1000V BR8 R / Diode Rectifier Bridge Single 1KV 10A 4-Pin Case BR-8 Box
Datasheet
BR1010SG-G Datasheet
Sample
ECAD Module
Need Help
Request For Proposal

Products specifications

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 5A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, BR-8
Manufacturer Package BR-8
Win Source Part Number 770381-BR1010SG-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Family Name BR1010SG
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Alternative Parts
(Cross-Reference) 		MP1010G; SB106; KBPC810;

Description

The Comchip Technology 708748 is a discrete semiconductor product that is used for single phase diode type. This component is packaged in bulk and has a through hole mounting style. The Comchip Technology 708748 has a current - average rectified (Io) of 10A and a voltage - peak reverse (maximum) of 1000V. It has a voltage - forward (Vf) (maximum) @ If of 1.1V @ 5A. You can visit the manufacturer homepage at www.comchiptech.com to learn more about this product.
