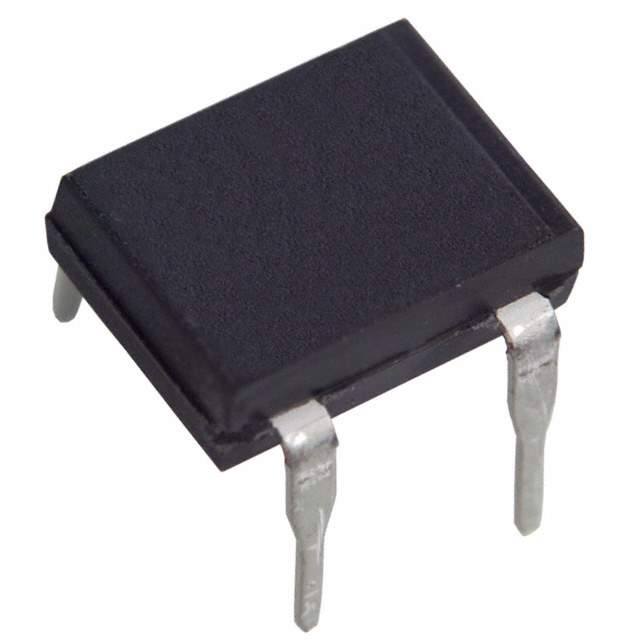

Introducing the DF02M Bridge Rectifier from Diodes Incorporated

The DF02M is a reliable and efficient bridge rectifier designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. The DF02M is part of their extensive range of rectifier products, known for their high performance and durability.

Key Features and Benefits

• High Current Capability: With a forward current of 1.5A, the DF02M can handle a moderate amount of current, making it suitable for a variety of applications.
• Peak Repetitive Reverse Voltage: It has a peak repetitive reverse voltage (Vrrm) of 200V, which ensures that the device can tolerate high voltage spikes without damage.
• Low Forward Voltage Drop: The device exhibits a low forward voltage drop, thereby enhancing power efficiency and reducing thermal stress on the circuit.
• High Surge Current Capability: The DF02M is capable of withstanding high surge currents, which is critical for applications that experience short bursts of high current.
• Compact Package: Encased in a compact, square 4-pin DFM package, the DF02M saves space on the PCB while still offering robust performance.
• RoHS Compliant: The product is compliant with RoHS standards, ensuring that it meets the environmental and health criteria by restricting the use of specific hazardous materials.

Applications

The DF02M is ideally suited for general-purpose AC/DC bridge full-wave rectification for power supply, adapters, lighting ballasts, battery charger, home appliances, office equipment, and telecommunication applications. Its compact size and high efficiency make it an excellent choice for designs where space is at a premium and energy efficiency is desired.

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products that meet the stringent requirements of the electronics industry. The DF02M bridge rectifier is a testament to this commitment, offering both longevity and consistent performance. With its robust construction and adherence to industry standards, the DF02M is a product you can trust for your rectification needs.

For detailed specifications and application notes, designers and engineers are encouraged to consult the datasheet and technical resources provided by Diodes Incorporated.
