GBJ1010-F Bridge Rectifier Overview

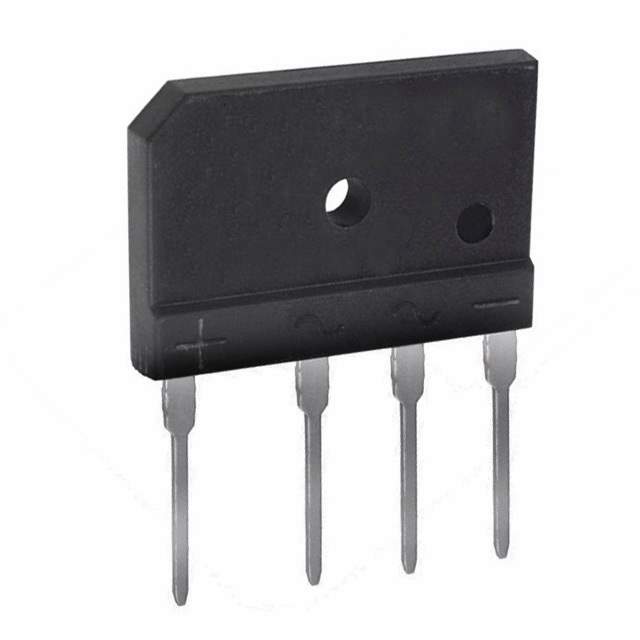

The GBJ1010-F is a robust single-phase bridge rectifier from Diodes Incorporated, designed for efficient and reliable AC to DC conversion in a variety of electronic applications. This component is a critical piece in power supply units, offering a high surge current capability and long-term reliability.

Key Features

• High Current Rating: The GBJ1010-F can handle a maximum average forward rectified current of 10A, making it suitable for high-power applications.
• Peak Reverse Voltage: With a peak reverse voltage of 1000V, this bridge rectifier can easily manage voltage spikes and surges, ensuring stable operation.
• High Surge Current: It is capable of withstanding a surge overload rating of 200A, which is essential for applications that may experience short-term power spikes.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which enhances power efficiency by minimizing power loss during operation.
• Isolation Voltage: It offers an isolation voltage of 2500V, providing an additional layer of safety and reliability.

Package and Installation

The GBJ1010-F comes in a GBJ package, which is known for its ease of mounting and solid construction. The package includes through-hole mounting which simplifies the installation process and ensures a secure connection to the PCB.

Applications

This bridge rectifier is widely used across various applications, including:

• Switching power supplies
• Adapters
• On-board DC/DC converters
• Motor controllers
• Other rectification circuits

Quality and Compliance

Diodes Incorporated is committed to delivering high-quality products. The GBJ1010-F meets stringent industry standards and is RoHS compliant, ensuring that it meets environmental regulations and is free from hazardous substances.

With its combination of high current capability, high voltage rating, and efficient operation, the GBJ1010-F is an excellent choice for designers looking to implement a reliable bridge rectifier into their power conversion systems.
