GBU1004 Bridge Rectifier Overview

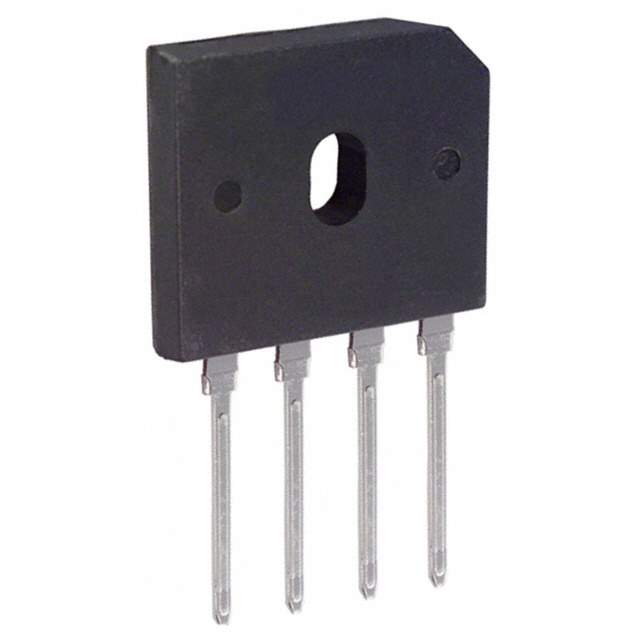

The GBU1004 from Diodes Incorporated is a high-quality bridge rectifier that is designed to offer efficient and reliable rectification for AC to DC conversion. This component is a part of the GBU series, which is known for its robust performance and compact form factor. The GBU1004 is suitable for a wide range of applications, including power supplies, battery chargers, and other electronic devices that require a steady and stable DC voltage.

Key Features and Benefits

• High Current Rating: The GBU1004 is capable of handling up to 10A of average rectified output current, making it suitable for applications that require a high current capacity.
• Peak Reverse Voltage: This bridge rectifier can withstand peak repetitive reverse voltages up to 400V, ensuring protection against voltage spikes and surges.
• Low Forward Voltage Drop: The low forward voltage drop feature minimizes power loss and improves efficiency, which is crucial for energy-sensitive designs.
• High Surge Current Capability: It can handle high surge currents, which is beneficial for applications that experience short bursts of high current.
• Isolation Voltage: With an isolation voltage of 1500V, the GBU1004 provides excellent electrical isolation between the input and output, which enhances safety and reliability.
• Compact Package: The GBU package is designed to save space on the PCB, allowing for more compact designs without sacrificing performance.

Applications

The versatility of the GBU1004 makes it an ideal choice for a variety of electronic applications, including:

• Power management systems
• AC/DC converters
• Switching power supplies
• Adapters
• Motor controllers
• Consumer electronics

With its excellent rectification efficiency, high reliability, and compact size, the GBU1004 from Diodes Incorporated is an exceptional choice for designers looking to enhance their power conversion systems. Its robust design ensures long-term performance, making it a valuable component in any electronic product that demands high-quality power rectification.
