Product Overview: KBP210G Bridge Rectifier from Diodes Incorporated

The KBP210G is a single-phase bridge rectifier produced by Diodes Incorporated, a leading manufacturer in the semiconductor market. This robust rectifier is designed to convert an input of alternating current (AC) into a steady direct current (DC), making it an essential component in power supply applications. With its high surge current capability and low forward voltage drop, the KBP210G ensures efficient operation and reliability in a wide range of electronic devices.

Key Features

• High Current Capability: The KBP210G is capable of handling 2A of average rectified output current, making it suitable for moderate power demands.
• Peak Repetitive Reverse Voltage: This device can withstand up to 1000V of reverse voltage, providing ample protection against voltage spikes and surges.
• Low Forward Voltage Drop: With a forward voltage drop of typically 1.1V, the KBP210G ensures that power loss is minimized during the rectification process, leading to higher efficiency.
• Surge Overload Rating: It boasts a surge overload rating of 60A peak, offering excellent tolerance to surge currents that may occur during operation.

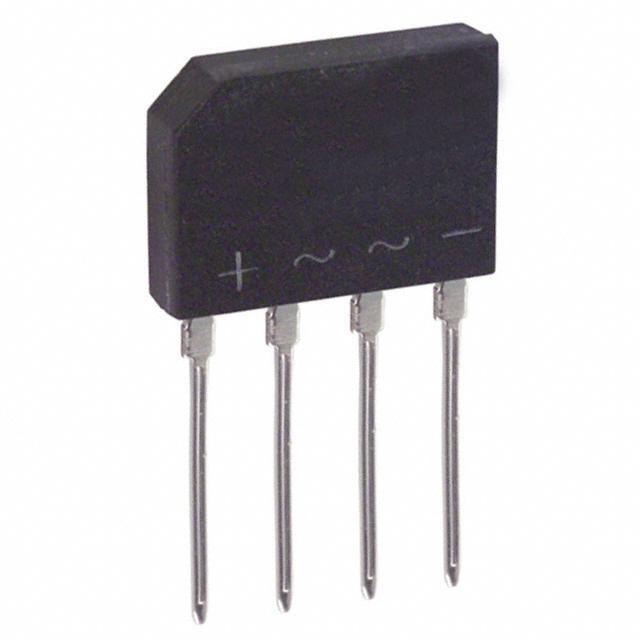

• Case: The rectifier comes in a KBP package, which is a standard 4-pin bridge rectifier package that is easy to mount on printed circuit boards (PCBs).
• Operating Temperature: The KBP210G operates effectively over a wide temperature range from -55°C to +150°C, accommodating various environmental conditions.

Applications

Thanks to its versatile features, the KBP210G is widely used in various applications, including:

• Power supplies for consumer electronics
• Adapters and battery chargers
• Home appliances
• Office machines and automation systems
• Telecommunication devices

Diodes Incorporated's KBP210G bridge rectifier is a reliable and efficient solution for designers looking to ensure steady DC power in their electronic circuits. Its robust design and high-performance characteristics make it an excellent choice for a broad array of applications where dependable rectification is required.

Environmental Compliance

The KBP210G is RoHS-compliant, ensuring that it meets the European Union's restrictions on the use of certain hazardous substances in electrical and electronic equipment. This commitment to environmental safety underscores Diodes Incorporated's dedication to producing eco-friendly and sustainable components.
