Diodes Incorporated SBR30A100CTE - A Robust Rectifier Solution

The SBR30A100CTE from Diodes Incorporated is a high-performance Schottky barrier rectifier designed for applications requiring low forward voltage drop and high surge current capability. This rectifier is part of Diodes Incorporated's Super Barrier Rectifier (SBR®) series, which are known for their superior performance compared to traditional Schottky diodes. With its advanced technology, the SBR30A100CTE provides enhanced efficiency and reliability, making it an ideal choice for power supply designs and various other electronic circuits.

Key Features and Benefits

• High Surge Capability: The SBR30A100CTE is capable of withstanding high surge currents, ensuring robust performance during transient conditions.
• Low Forward Voltage Drop: With a low forward voltage drop, this rectifier minimizes power loss and improves efficiency, which is critical for energy-sensitive applications.
• High Temperature Operation: The device can operate at high temperatures, making it suitable for use in challenging thermal environments.
• RoHS Compliant: The SBR30A100CTE is RoHS compliant, ensuring that it meets the latest environmental standards and regulations.

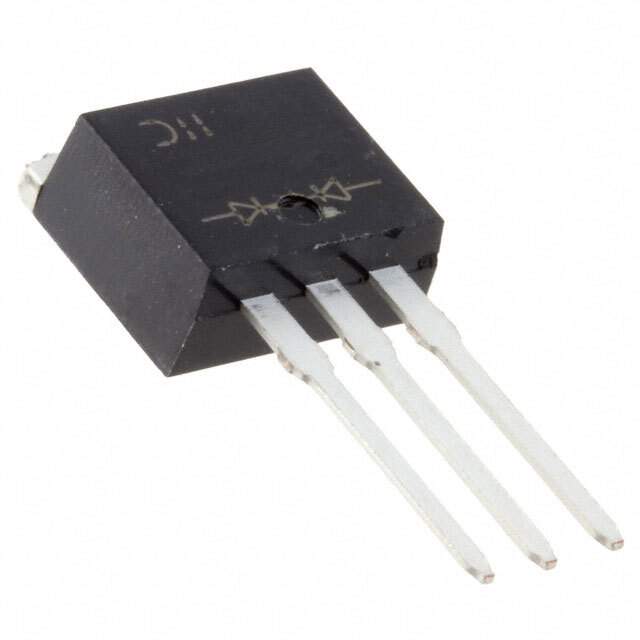

• TO-220AB Package: Packaged in the industry-standard TO-220AB, it provides a familiar layout for ease of design and compatibility with existing applications.

Applications

The SBR30A100CTE is versatile and can be used in a wide range of applications, including:

• Power management systems
• DC-DC converters
• Free-wheeling diodes in inverter circuits
• Polarity protection applications
• Automotive applications where high reliability is required

Technical Specifications

The SBR30A100CTE has a maximum average forward rectified current of 30A and a peak reverse voltage of 100V. Its forward voltage drop is typically low, and it has a maximum operating junction temperature of 150°C, which ensures stable performance across a wide range of operating conditions.

In summary, the SBR30A100CTE from Diodes Incorporated is a superior choice for designers looking for a high-efficiency and reliable rectifier. Its robust surge capability, low forward voltage drop, and high-temperature operation make it an excellent component for power-intensive applications.
