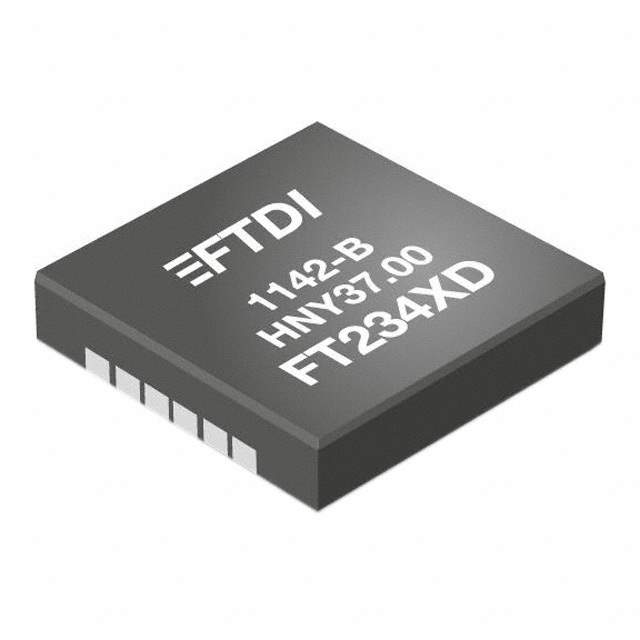

FT234XD-R

Part No FT234XD-R
Manufacturer FTDI, Future Technology Devices International Ltd
Catalog Interface - Controllers
Description USB-to-UART 1-CH 512byte FIFO 5V 12-Pin DFN EP T/R / IC USB SERIAL BASIC UART 12DFN
Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date
Ship today if order in (HKT)
Supplier Lead-Time Call for availability
Estimate shipping fee
Enter your destination to get a shipping estimate
Estimate Shipping Fee
Pricing & Ordering $1.942 Historical reference price : is the price that a customer announces that it is willing to pay for this component in the previous period, only for reference.
Quantity
Unit Price
Ext. Price
17+
$3.1090
$52.853
40+
$2.5510
$102.040
61+
$2.4710
$150.731
84+
$2.3920
$200.928
109+
$2.3120
$252.008
145+
$2.0730
$300.585
* The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Availability: 32,011 pieces
MOQ: 17 pcs
Order Increment : 1 pcs
*Need More Quantity? *Request a Bulk Quantity Quotation?
Estimate shipping
Enter your destination to get a shipping estimate

*

Products specifications

Categories Integrated Circuits
Manufacturer FTDI, Future Technology Devices International Ltd
Packaging Reel - TR
Status Active
Protocol USB
Purpose Bridge, USB to UART
Standards USB 2.0
Supply Voltage - Operating 2.97 V to 5.5 V
Operating Supply Current 8mA
Temperature Range - Operating -40°C to 85°C
Case / Package 12-DFN (3x3)
Win Source Part Number 1040295-FT234XD-R
Is this a common-used part? Yes
Popularity High
Fake Threat In the Open Market 29 pct.
Supply and Demand Status Balance
Family Name FT234XD
Introduction Date February 15, 2013
ECCN EAR99
Country of Origin Indonesia, Taiwan
Halogen Free Compliant
Estimated EOL Date 2031
Alternative Parts
(Cross-Reference)
FT234XD-T;

Description

FT234XD-R USB to Basic UART IC

The FT234XD-R is a compact bridge device from Future Technology Devices International Ltd (FTDI) that converts signals from a USB interface to basic UART (Universal Asynchronous Receiver/Transmitter). This integrated circuit is part of FTDI's expansive USB product line, which is known for its high reliability and ease of use.

Featuring FTDI's proprietary 'USB to UART' technology, the FT234XD-R is designed for simplicity and functionality, making it an ideal solution for applications requiring serial communication over USB. The device is perfect for upgrading legacy peripherals to USB, interfacing MCU-based designs to USB, or even for battery chargers that require USB connectivity for status and control purposes.

The FT234XD-R provides a cost-effective solution without compromising on performance. It supports baud rates from 300 baud to 3 Mbaud and comes with a full set of USB power configuration options, including self-powered and bus-powered configurations. The device also includes an integrated 2048 byte EEPROM, which can be used for storing device descriptors and CBUS I/O configuration.

Notably, the FT234XD-R is equipped with FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers, which offer further ease of integration and broad operating system compatibility, including support for Windows, Mac, Linux, and Android platforms. The VCP drivers allow the FT234XD-R to appear as a COM port to serial applications, while the D2XX drivers provide a direct access to the USB device via a DLL application programming interface.

For rapid development and prototyping, the FT234XD-R is available in a compact 16-pin SSOP package, making it suitable for space-constrained applications. Furthermore, the device is fully compliant with USB 2.0 specifications and has an operating temperature range of -40°C to 85°C, ensuring reliable operation across diverse environments.

The FT234XD-R from FTDI is a testament to the company's commitment to providing advanced USB technology that is both accessible and efficient for designers and engineers across various industries.
