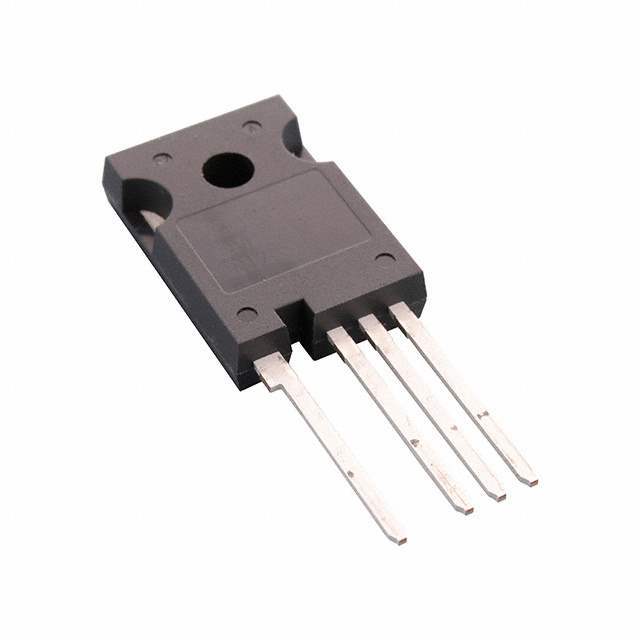

NVH4L022N120M3S

Part No NVH4L022N120M3S
Manufacturer ON Semiconductor
Catalog FETs - Single
Description SIC MOS TO247-4L 22MOHM 1200V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202293-NVH4L022N120M3S
Manufacturer onsemi
Category Discrete Semiconductor Products -Transistors -FETs, MOSFETs -Single FETs, MOSFETs
Series Automotive, AEC-Q101
Package Tube
Product Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole

Description

ON Semiconductor NVH4L022N120M3S Overview

The NVH4L022N120M3S is a cutting-edge power MOSFET device designed and manufactured by ON Semiconductor, a leading innovator in energy-efficient electronics. This high-performance product is specifically engineered to meet the demanding requirements of modern power conversion applications, offering a combination of low on-resistance, high-speed switching, and ruggedized design features.

Key Features

  • High Current Capability: The NVH4L022N120M3S is capable of handling continuous drain currents, making it suitable for high-power applications.
  • Low On-Resistance: With an exceptionally low on-resistance, this MOSFET ensures minimal power loss during operation, which translates into higher efficiency and better thermal performance.
  • Fast Switching Speed: The device's fast switching speed enables efficient operation at high frequencies, which is critical for reducing the size of passive components and improving overall power density.
  • 1200V Rated Breakdown Voltage: The high breakdown voltage rating makes this MOSFET ideal for applications that require high voltage operation, providing a robust solution for power supplies, inverters, and motor drives.
  • SiC Technology: Built with Silicon Carbide (SiC) technology, the NVH4L022N120M3S offers superior thermal characteristics and reliability compared to silicon-based MOSFETs.

Applications

The NVH4L022N120M3S is versatile and can be used in a wide range of applications, including but not limited to:

  • Renewable energy systems such as solar inverters and wind turbines
  • Electric vehicle (EV) charging stations
  • Uninterruptible power supplies (UPS)
  • High-voltage DC/DC converters
  • Power factor correction (PFC) circuits

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The NVH4L022N120M3S is subject to rigorous testing and quality control procedures, ensuring that it meets the stringent standards required for industrial and automotive applications. Customers can trust in the reliability and performance of this MOSFET to deliver efficient power management in their critical applications.
