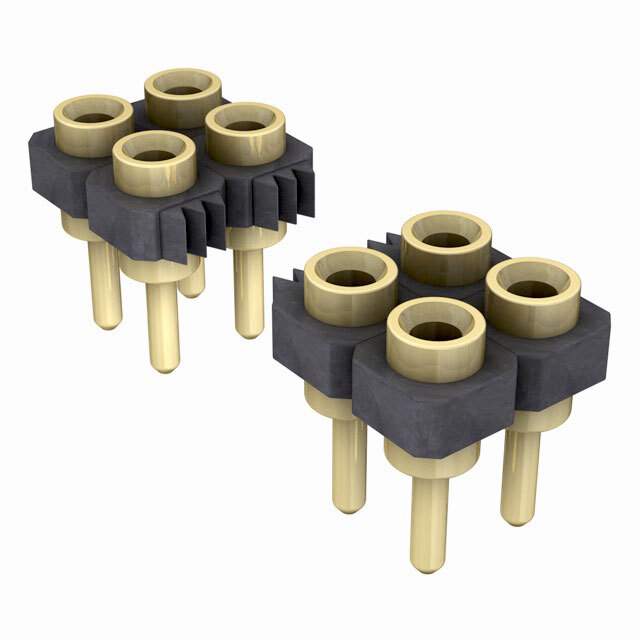

SDL-130-G-10

Part No SDL-130-G-10
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
Sample
ECAD Module
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date Ask for an estimation

Products specifications

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-130
Other Names SAM1133-30
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292970-SDL-130-G-10
Fake Threat In the Open Market 59 pct.
Temperature Range - Operating -55°C ~ 125°C
Contact Length - Post 0.108" (2.75mm)
Insulation Height 0.122" (3.10mm)
Insulation Color Black
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Mating Gold
Fastening Type Push-Pull
Termination Solder
Mounting Type Through Hole
Row Spacing - Mating 0.100" (2.54mm)
Number of Rows 2
Pitch - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Number of Positions 60
Style Board to Board
Contact Type Female Socket
Connector Type Receptacle
Package Tube
Series SDL
Mfr Samtec Inc.
Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets

Description

The SDL series receptacle connector from Samtec Inc. is a board-to-board style connector with a pitch of 0.100" (2.54mm) and 60 positions. The connector features a push-pull fastening type and is terminated with solder. It has circular contact shapes made of beryllium copper and gold contact finish thickness of 10.0µin (0.25µm). The insulation material used is liquid crystal polymer (LCP), and the insulation height is 0.122" (3.10mm). The connector is rated for a temperature range of -55°C ~ 125°C and is unaffected by REACH. This connector is ideal for use in applications that require a high-density board-to-board connection.
