The ADRF5024BCCZN is a cutting-edge RF switch developed by Analog Devices Inc., designed to deliver exceptional performance in a broad range of radio frequency applications. This product is part of a family of high-reliability, silicon-based switches that are ideal for use in test equipment, communication systems, and military applications, among others.

Key Features

• Frequency Range: The ADRF5024BCCZN operates over a wide frequency range from 9 kHz to 44 GHz, making it versatile for various high-frequency applications.
• Low Insertion Loss: With an insertion loss of typically 1.7 dB at 30 GHz, this switch maintains signal integrity and minimizes power loss during transmission.
• High Isolation: It offers excellent isolation, typically 30 dB at 30 GHz, ensuring minimal signal leakage between the RF ports.
• High Linearity: The switch features high linearity with an input IP3 of 58 dBm, providing consistent performance for signals with complex modulation schemes.
• Non-reflective Design: Its non-reflective single-pole, four-throw (SP4T) configuration ensures minimal signal reflection.
• Fast Switching Speed: The ADRF5024BCCZN boasts a fast switching speed of 12 ns, enabling quick transitions between channels or signal paths.

Applications

• Test and measurement equipment
• Wireless communication infrastructure
• Satellite communication systems
• Phased array radars
• Electronic warfare

Product Specifications

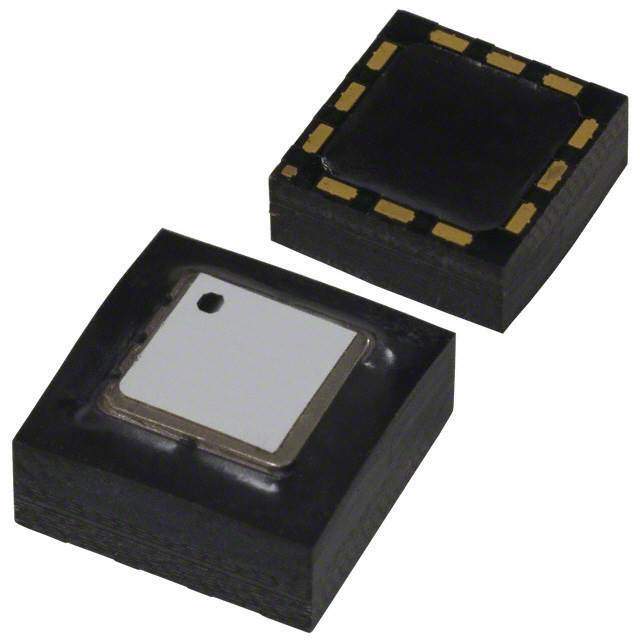

The ADRF5024BCCZN is packaged in a compact 4 mm × 4 mm, 24-lead LGA package, which is RoHS compliant and supports temperature ranges from -40°C to +105°C. Its single supply voltage ranges from +3.3 V to +5 V, and it features an ESD rating of ±1 kV (HBM). This product is a testament to Analog Devices Inc.'s commitment to providing high-performance, reliable solutions for advanced RF applications.
