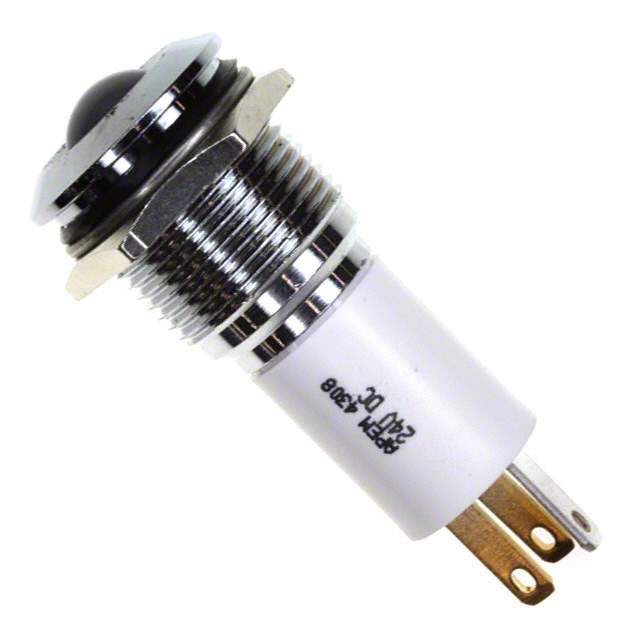

Q16P1CZZRYG24E Real Image
Same model may have multiple batches, images only for reference.

Q16P1CZZRYG24E

Part No Q16P1CZZRYG24E
Manufacturer Apem Inc.
Catalog Panel Indicators, Pilot Lights
Description INDICATOR 24V 16MM PROM R/Y/G  /  LED Panel Indicator Green, Red, Yellow Diffused 100° 24V Green, 24V Red, 24V Yellow 20mA Green, 20mA Red, 20mA Yellow Quick Connect - 0.110" (2.8mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr APEM Inc.
Series Q16
Package Bulk
Type LED
Lamp Color Green, Red, Yellow
Lens Transparency Diffused
Ratings DC
Voltage 24V Green, 24V Red, 24V Yellow
Current 20mA Green, 20mA Red, 20mA Yellow
Panel Cutout Shape Round
Panel Cutout Dimensions 0.63" (16.00mm)
Lens Size 10.00mm Dia
Lens Style Round with Domed Top
Millicandela Rating 50mcd Green, 80mcd Red, 50mcd Yellow
Viewing Angle 100°
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP67
Base Product Number Q16P1CZZRYG
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 679-1705
Standard Package 25
Win Source Part Number 1226374-Q16P1CZZRYG24E
Ultra Librarian 3D Model Ultra Librarian Q16P1CZZRYG24E CAD Model

Description

The APEM Inc. Q16P1CZZRYG24E is a panel indicator that features a round lens with a domed top.

  • Manufacturer: APEM Inc.
  • Lens Shape: Round, Domed
  • Viewing Angle: 100°
  • Lens Size: 10.00mm Dia.
  • Colors: Green, Red, Yellow
  • Voltage Rating: 24V
  • Millicandela Rating: 50mcd (Green, Yellow), 80mcd (Red)
  • LED Type: Indicator
  • Termination Style: Quick Connect
  • Panel Cutout Dimension: 0.63" (16.00mm)
  • Circuit: DC
  • Ingress Protection: IP67
  • Standard Package: 25
