The MAX30100EFD+ is a high-performance, integrated pulse oximetry and heart-rate monitor sensor solution from Maxim Integrated. It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.

Key Features

• Integrated LEDs, Photo Sensor, and High-Performance Analog Front-End: The MAX30100EFD+ is equipped with red and infrared LEDs for pulse oximetry measurements and a photodetector for detecting the light reflected from the blood underneath the skin.
• Low Power Consumption: Designed for wearable devices where power efficiency is crucial, the MAX30100EFD+ operates on a low power supply voltage of 1.8V for the sensor and 3.3V for the internal LEDs, ensuring long battery life for portable applications.
• Advanced Functionality: The device features programmable sample rates and LED current for use in a wide range of applications, including fitness and medical wearable devices.
• High SNR: Provides robust pulse readings with high signal-to-noise ratio (SNR), enabling accurate measurements even under challenging conditions.

Applications

The MAX30100EFD+ is ideal for a variety of applications, including:

• Wearable Devices
• Fitness Monitoring Equipment
• Medical Monitoring Devices

Technical Specifications

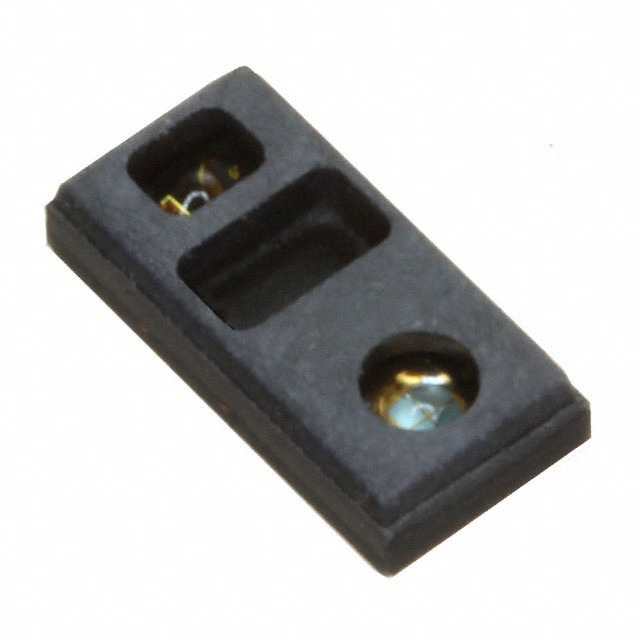

The MAX30100EFD+ is available in a compact 14-pin optical module that can be easily integrated into a wide range of health-related consumer products. With its advanced features and low power consumption, it is a top choice for designers looking to create innovative and efficient health monitoring devices.
