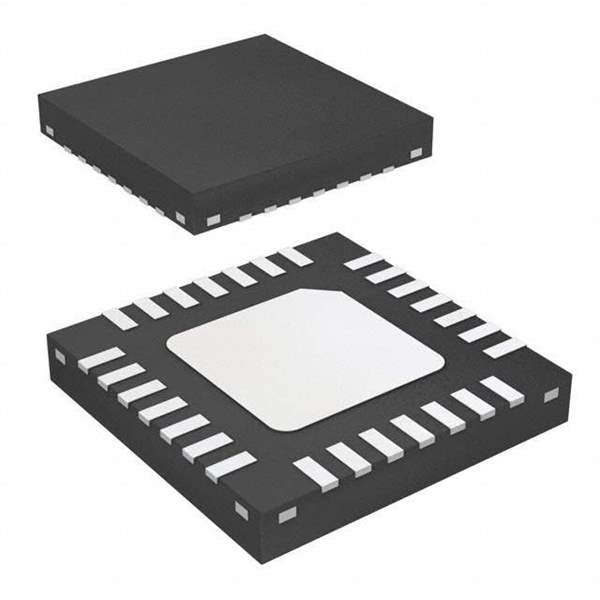

LM21305SQ/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM21305SQ/NOPB

Part No LM21305SQ/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description Conv DC-DC 3V to 18V Synchronous Step Down Single-Out 0.6V to 5V 5A 28-Pin WQFN EP T/R / IC REG BUCK ADJ 5A SYNC 28WQFN
Datasheet
LM21305SQ/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 3V
Maximum Input Voltage 18V
Nominal Output Voltage (Min/Fixed) 0.598V
Maximum Output Voltage 18V
Output Current 5A
Frequency - Switching 300kHz to 1.5MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 28-WQFN (5x5)
Win Source Part Number 018679-LM21305SQ/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LM21305
Introduction Date March 17, 2010
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LM21305SQ/NOPB CAD Model

Description

The LM21305SQ/NOPB is a high-performance integrated circuit (IC) manufactured by Texas Instruments, a leading global semiconductor company.

  • Switching Frequency: Up to 2.2 MHz
  • Efficiency: Up to 95%
  • Package: 24-pin WQFN
