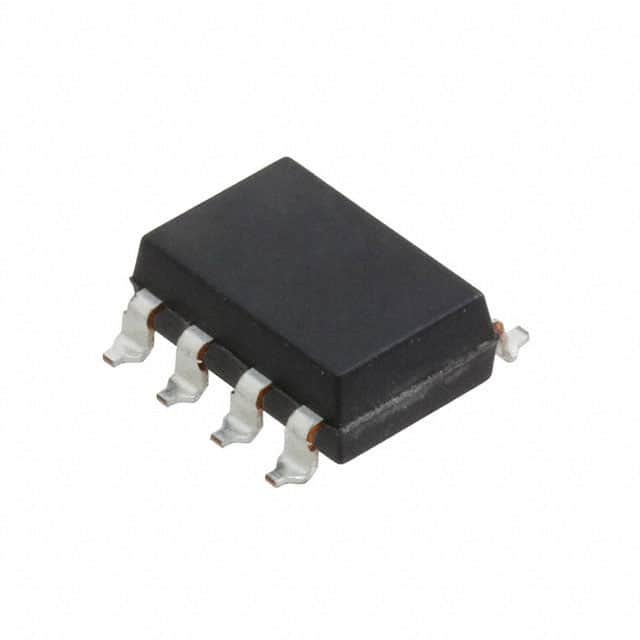

CS330
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Coto Technology
Series COTOMOS™
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.37VDC
Voltage - Load 0 V ~ 400 V
Load Current 100 mA
On-State Resistance (Max) 30 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Standard Package 45 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 916050-CS330
Ultra Librarian 3D Model Ultra Librarian CS330 CAD Model

Description

The CS330 is a solid-state relay from Coto Technology. It is part of the COTOMOS™ series and features a gull wing termination style.

  • Type: Solid State Relay
  • Manufacturer: Coto Technology
  • Series: COTOMOS™
  • Termination Style: Gull Wing
  • Voltage Input: 1.37VDC
  • Output Type: AC and DC
  • Circuit: SPST-NO
  • Circuit Configuration: (Single-Pole, Single-Throw)
  • On-State Resistance (Max): 30 Ohms
  • Load Current: 100 mA
  • Voltage Load: 0 V to 400 V
  • Mounting Type: Surface Mount
  • Package: 8-SMD
  • Package Size: 0.300" (7.62mm)
  • Packaging: Tube
  • Standard Package Quantity: 45 pcs
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • Status: Obsolete
