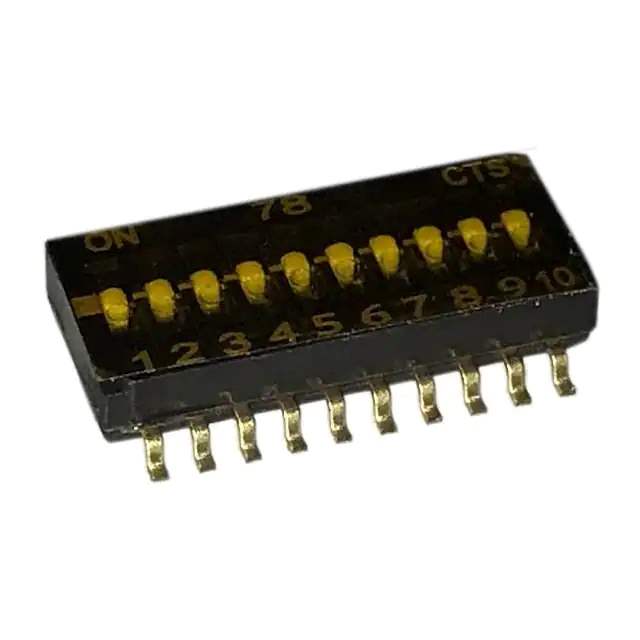

Same model may have multiple batches, images only for reference.

218-10LPSTR

Name: 218-10LPSTR
Brand: CTS Electrocomponents
SKU: 849472
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	218-10LPSTR
Manufacturer	CTS Electrocomponents
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 25MA 24V
Datasheet	218-10LPSTR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - DIP Switches
Mfr	CTS Electrocomponents
Series	218
Package	Tape & Reel
Product Status	Active
Circuit	SPST
Number of Positions	10
Current Rating (Amps)	25mA
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Contact Material	Beryllium Copper
Contact Finish	Gold
Height Above Board	0.104" (2.65mm)
Mounting Type	Surface Mount
Termination Style	Gull Wing
Pitch	0.050" (1.27mm), Half
Washable	Yes
Features	Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating	-55°C ~ 85°C
Length	0.546" (13.87mm)
Electrical Life	1,000 Cycles
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
California Prop 65	Warning Information
Win Source Part Number	849472-218-10LPSTR
Ultra Librarian 3D Model	Ultra Librarian 218-10LPSTR CAD Model

Alternative Products

Description

The 849472-218-10LPSTR is a DIP switch from CTS Electrocomponents.

Series: 218
Positions: 10
Pitch: 0.050" (1.27mm)
Design: Half Pitch
Termination Style: Gull Wing
Terminals: Epoxy Sealed with Tape Seal
Contact Finish: Gold
Contact Material: Beryllium Copper
Package: Tape & Reel
Standard Package: 2,000 pcs
Voltage Rating: 24VDC
Current Rating: 25mA
Height Above Board: 0.104" (2.65mm)
Length: 0.546" (13.87mm)
Switch Type: SPST
Actuator Type: Slide
Electrical Life: 1,000 cycles
Features: Washable
Mounting Type: Surface Mount
Temperature Range: -55°C to 85°C
Compliance: REACH
Warning: California Prop 65
