Introducing the LTC3545EUD: A High-Efficiency, Triple Output Synchronous Buck Regulator

The LTC3545EUD is a cutting-edge power management solution from Linear Technology designed to cater to the demanding needs of modern electronic devices. This high-performance integrated circuit features triple output synchronous buck regulators that efficiently convert input voltages to lower output voltages with high accuracy and exceptional power efficiency.

Key Features:

• Wide Input Voltage Range: The LTC3545EUD operates from an input voltage range of 2.25V to 5.5V, making it suitable for single-cell Li-Ion, multi-cell alkaline or NiMH applications, as well as standard 3.3V and 5V power rails.
• Triple Independent Outputs: It provides three independent output voltages, which can be set to as low as 0.8V with a resistor divider, offering versatility for powering various components of an electronic system.
• High Efficiency: The device achieves up to 95% efficiency, which significantly reduces power loss and heat generation, enhancing the overall performance and reliability of the system it powers.
• Adjustable Switching Frequency: The LTC3545EUD features an adjustable switching frequency from 300kHz to 2.25MHz, allowing designers to optimize the trade-off between efficiency and component size.

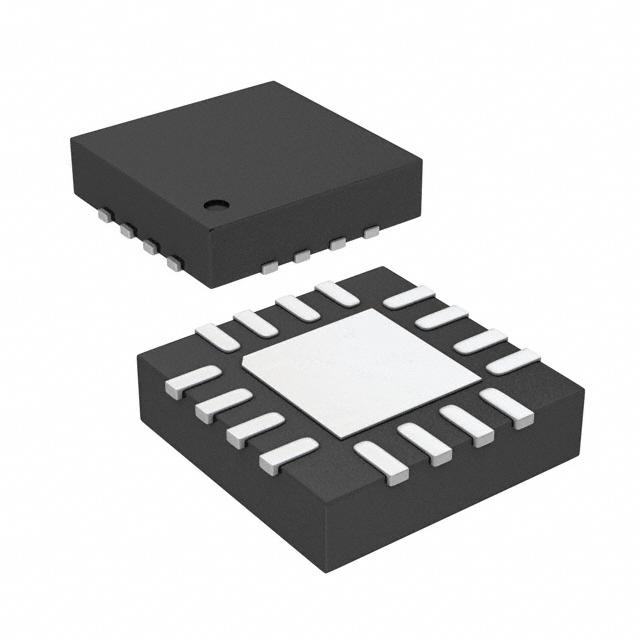

• Small Footprint: Housed in a compact 16-lead QFN package, the LTC3545EUD minimizes the space required on a PCB, which is critical for space-constrained applications.
• Burst Mode® Operation: To enhance efficiency at light loads, the LTC3545EUD incorporates Burst Mode operation, which reduces quiescent current and maintains high efficiency over a wide range of load currents.
• Protection Features: The device includes internal soft-start to limit inrush current during startup, overvoltage protection, and overtemperature protection for safe operation under abnormal conditions.

Applications:

The LTC3545EUD is ideal for portable electronics, such as handheld devices, GPS units, and digital cameras, as well as other battery-powered applications that require multiple regulated voltages. Its high efficiency and flexible design also make it suitable for distributed power systems in industrial and automotive applications.

With the LTC3545EUD, designers can achieve a compact, efficient, and reliable power supply solution, ensuring that their products meet the stringent power requirements of today's advanced electronic devices.
