The LTM8023EV#PBF from Linear Technology is a complete, versatile micro-module (μModule) regulator designed to offer high efficiency and ease of use in a compact package. This innovative product integrates the inductor, power switches, and all support components into a single package, simplifying the design process and reducing the board space required for power management solutions.

Key Features

• Integrated Solution: The LTM8023EV#PBF combines an inductor, power switches, a DC/DC controller, and the necessary support components into a single LGA package, reducing the complexity of the design and minimizing the footprint on the PCB.
• Wide Input Voltage Range: It operates over a wide input voltage range of 3.6V to 36V, making it suitable for a variety of applications, including industrial, automotive, and communications systems.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 10V, which allows for flexibility in powering different loads and adapting to various system requirements.
• High Efficiency: With high efficiency up to 92%, the LTM8023EV#PBF reduces power loss and heat dissipation, which can be critical in thermally constrained environments.

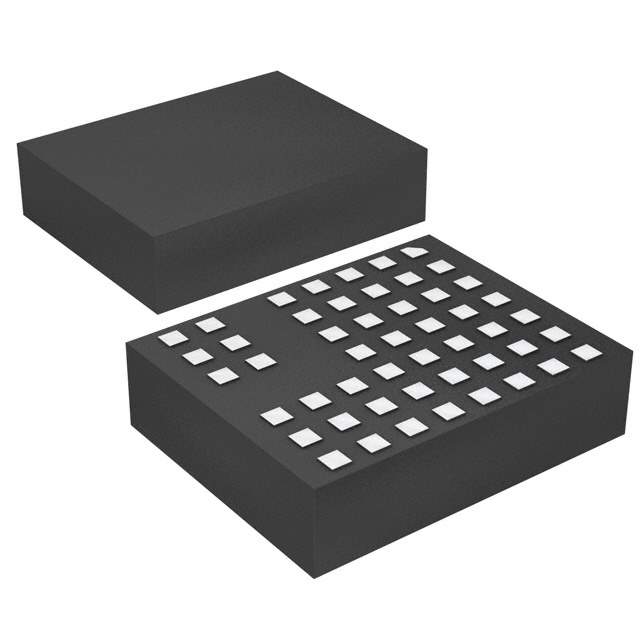

• Compact Size: The micro-module regulator comes in a low-profile (2.82mm) surface-mount LGA package measuring 9mm x 15mm x 2.82mm, ideal for space-constrained applications.
• Thermal Performance: Its excellent thermal performance ensures reliable operation even at full load over a temperature range of -40°C to 125°C.

Applications

The LTM8023EV#PBF is a versatile solution suitable for a wide array of applications, including but not limited to:

• Telecommunications infrastructure
• Industrial equipment
• Automotive systems
• Datacom and storage systems
• Medical devices
• Distributed power systems

Conclusion

Overall, the Linear Technology LTM8023EV#PBF μModule regulator is an ideal choice for designers looking for a high-efficiency, easy-to-use power management solution that saves board space and reduces design complexity. Its robust feature set and integrated design make it a go-to component for a wide range of power supply applications.
