Products specifications

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Microchip Technology
Package Tube
Product Status Obsolete
Programmable Not Verified
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 16Kbit
Memory Organization 2K x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 200µs
Access Time 150 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TC)
Mounting Type Through Hole
Package / Case 24-DIP (0.600", 15.24mm)
Supplier Device Package 24-PDIP
Base Product Number AT28C16
Standard Package 16 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0051
Win Source Part Number 565486-AT28C16E-15PC
Ultra Librarian 3D Model Ultra Librarian AT28C16E-15PC CAD Model

Description

Microchip Technology AT28C16E-15PC

The AT28C16E-15PC is a high-performance, 16K parallel EEPROM from Microchip Technology, providing robust storage solutions for a variety of applications. Designed with convenience and durability in mind, this EEPROM device offers non-volatile memory storage, which means that it retains data even when the power is turned off.

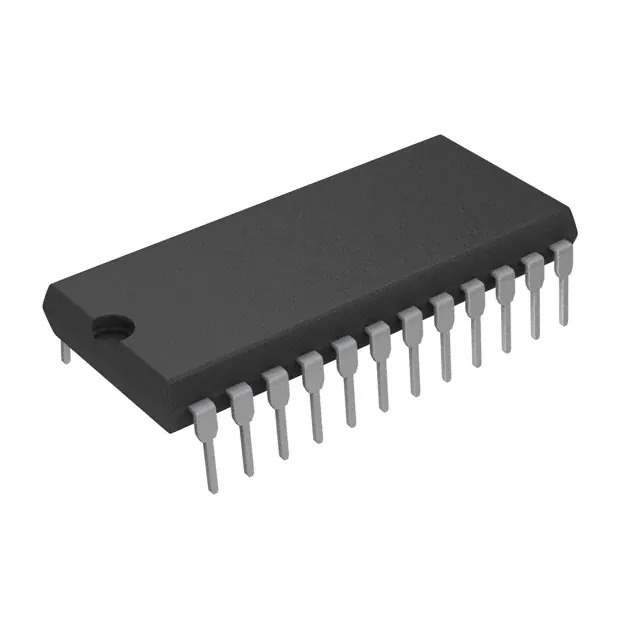

This particular model operates at a speed of 150ns, ensuring quick access to data, which is essential for high-speed microprocessor systems. The AT28C16E-15PC comes in a 24-pin DIP (Dual In-line Package), making it suitable for through-hole PCB mounting, a familiar package for traditional electronics enthusiasts and engineers alike.

With a 16,384 x 8-bit organizational structure, the AT28C16E-15PC provides ample space for firmware storage, device configuration data, or any application that requires a reliable and rewritable memory segment. It is also compatible with most microprocessors and is capable of both byte and page write, with the latter significantly reducing overall write times.

One of the key features of the AT28C16E-15PC is its low power consumption, which makes it an ideal choice for portable and power-sensitive applications. Additionally, it supports a wide operating voltage range, typically from 4.5V to 5.5V, providing flexibility and reliability in different power environments.

Microchip Technology has designed this EEPROM with data retention guaranteed for a minimum of 10 years and endurance of 100,000 write cycles, demonstrating its commitment to quality and longevity. This makes the AT28C16E-15PC an excellent choice for applications that require a long-term data storage solution without the need for frequent updates.

In summary, the AT28C16E-15PC from Microchip Technology is a versatile, reliable, and efficient EEPROM, perfect for a wide range of applications that require stable and persistent memory storage. Its speed, ease of integration, and robustness make it a top choice for designers and engineers looking for a memory component that will stand the test of time.
