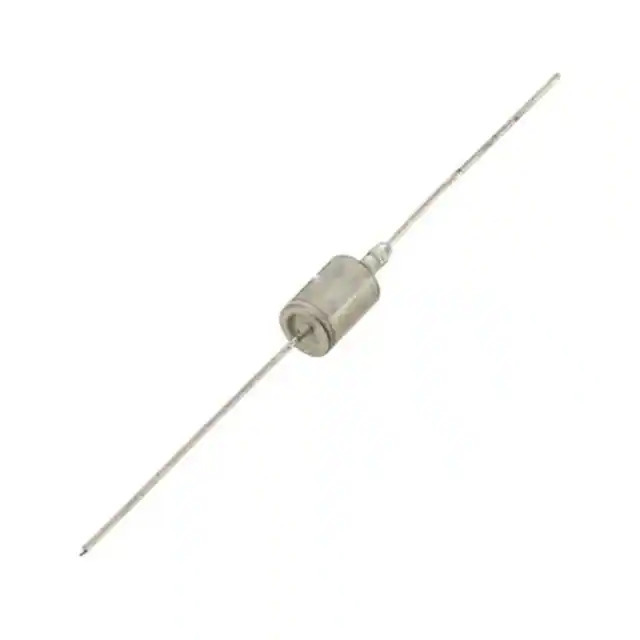

1N3034B Solid State Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Solid State Inc.
Series -
Package Bulk
Product Status Active
Voltage - Zener (Nom) (Vz) 39 V
Tolerance ±5%
Power - Max 1 W
Impedance (Max) (Zzt) 60 Ohms
Current - Reverse Leakage @ Vr 500 nA @ 29.7 V
Temperature Range - Operating -65°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-13
Supplier Device Package DO-13
Base Product Number 1N3034
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1377361-1N3034B
Ultra Librarian 3D Model Ultra Librarian 1N3034B CAD Model

Description

The 1377361-1N3034B is a single Zener diode from Solid State Inc. It is designed for use in discrete semiconductor applications.

  • Operating Temperature: -65°C to 175°C
  • Reverse Leakage Current: 500nA @ 29.7V
  • Maximum Power: 1W
  • Zener Voltage: 39V (Nominal)
  • Maximum Impedance: 60 Ohms
  • Package: DO-13
  • Mounting Type: Through Hole
