Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel
Type Steering (Rail to Rail)
Unidirectional Channels 2
Voltage - Reverse Standoff 5.25V
Voltage - Breakdown (Minimum) 6V
Voltage - Clamping (Maximum) at Ipp 17V
Current - Peak Pulse (10/1000μs) 5A (8/20μs)
Power Line Protection Yes
Applications Automotive, Ethernet
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package SOT-23-6
Supplier Device Package SOT-23-6
Family Part Number USBLC6-2
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1278354-USBLC6-2SC6Y
Manufacturer Homepage www.st.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name USBLC6-2SC6Y
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian USBLC6-2SC6Y CAD Model

Description

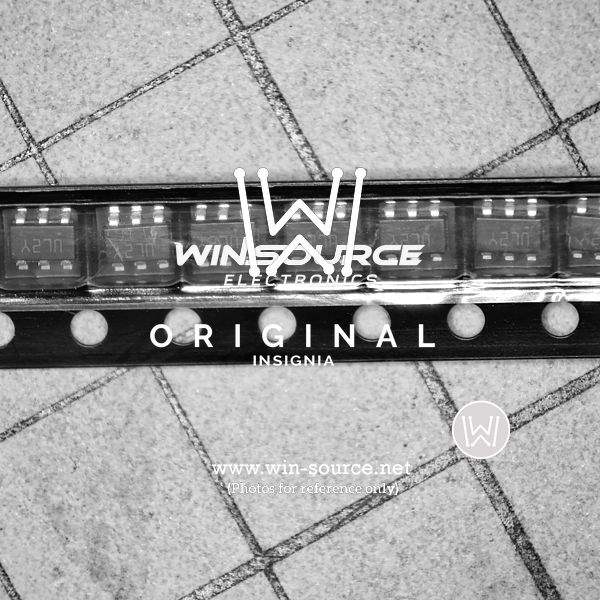

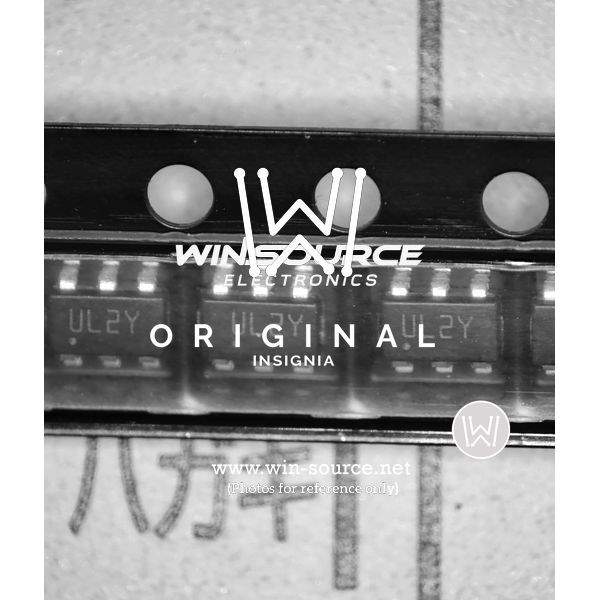

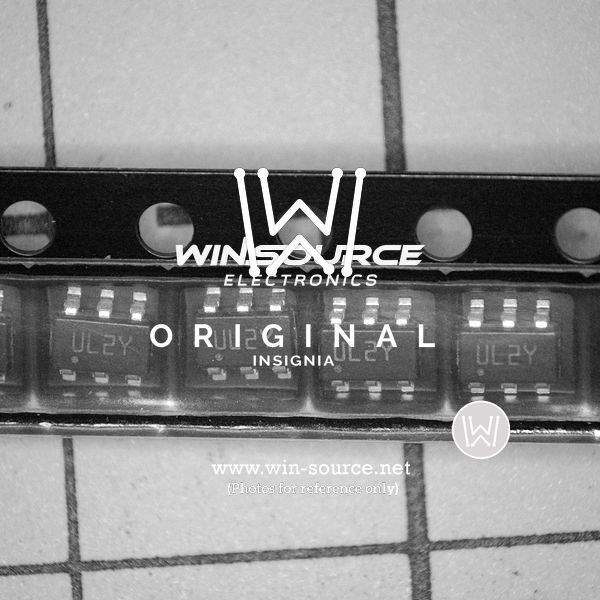

STMicroelectronics USBLC6-2SC6Y - ESD Protection Device

The USBLC6-2SC6Y from STMicroelectronics is a highly efficient, integrated ESD protection device, designed to safeguard high-speed data lines from electrostatic discharge damages. This robust component is specifically tailored for Universal Serial Bus (USB) applications, providing a shield for both USB data lines and power lines in a single package. The compact footprint of the device makes it an ideal choice for space-constrained applications, without compromising on the level of protection offered.

Constructed with STMicroelectronics' advanced low-capacitance TVS (Transient Voltage Suppressor) diode technology, the USBLC6-2SC6Y ensures minimal signal distortion, preserving signal integrity and ensuring the reliable operation of high-speed interfaces. This feature is particularly crucial for maintaining the performance of USB 2.0 data lines, which this device is designed to protect.

The USBLC6-2SC6Y is capable of withstanding numerous ESD strikes, meeting the IEC 61000-4-2 standard (Level 4), which specifies an ESD immunity of up to 15kV (air discharge) and 8kV (contact discharge). This high level of protection ensures that sensitive electronic components remain safeguarded against common ESD events, thus extending the longevity of the end product.

The device's low line capacitance also ensures compatibility with high-speed data protocols, making it not only suitable for USB 2.0 applications but also for other high-speed interfaces that require robust ESD protection. Its bidirectional design provides symmetrical ESD protection, ensuring that both positive and negative ESD strikes are equally mitigated.

Offered in a SOT23-6L package, the USBLC6-2SC6Y is designed for ease of integration into existing PCB layouts. Its small form factor and lead-free construction also make it an environmentally friendly choice, adhering to international regulations such as RoHS and REACH.

In summary, the USBLC6-2SC6Y from STMicroelectronics is a versatile and reliable solution for protecting sensitive electronics from ESD damage. Its low capacitance, high ESD immunity, and compact design make it an excellent choice for designers looking to enhance the durability and reliability of their USB-enabled devices.
