STMicroelectronics VN750B5TR-E: High-Side Driver

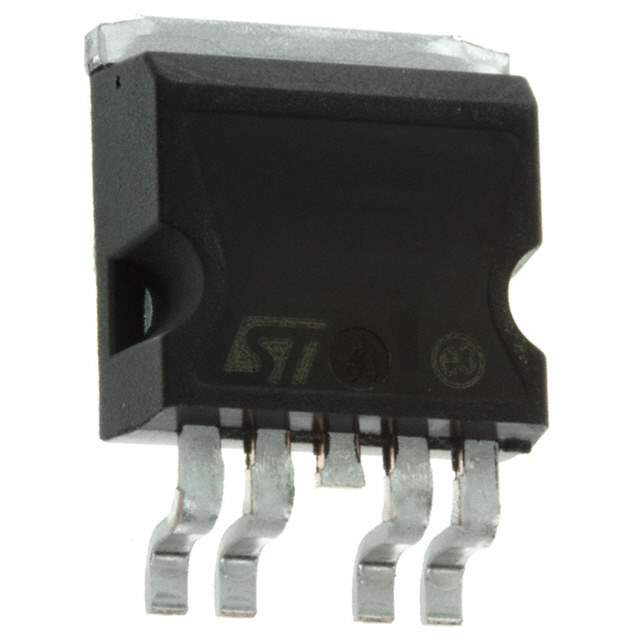

The VN750B5TR-E from STMicroelectronics is a robust high-side driver designed for automotive and industrial applications. This device is part of ST's VIPower M0-5 family and is specifically engineered to drive a wide range of loads with high efficiency and reliability. It is a surface-mount device, available in a compact SO-8 package, making it suitable for space-constrained applications.

The VN750B5TR-E integrates a vertical current flow power MOSFET with intelligent circuitry to provide a complete protection scheme and diagnostic features. Its high-side switch functionality enables it to drive inductive, capacitive, and resistive loads with a nominal load current limitation of 6A. This makes it an ideal choice for controlling various automotive subsystems such as lights, heaters, motors, and solenoids.

One of the key features of the VN750B5TR-E is its built-in thermal shutdown protection, which safeguards the device and the load in the event of an over-temperature condition. It also offers overcurrent and short-circuit protection, enhancing system reliability and safety. In addition to these protections, the device includes an open-load detection feature in the off-state, which is particularly useful for identifying wiring faults in a system.

The VN750B5TR-E is designed to operate over a wide supply voltage range, from 5.5V to 36V, accommodating the fluctuations commonly found in automotive electrical systems. It also has a very low standby current, which helps to minimize power consumption when the driver is not actively driving a load.

The integration of diagnostic feedback via a status output pin allows the VN750B5TR-E to communicate the status of the driven load to a microcontroller. This feature enables the development of sophisticated control and monitoring systems that can react promptly to fault conditions.

With its advanced protection features, diagnostic capabilities, and compact form factor, the VN750B5TR-E from STMicroelectronics represents a reliable and efficient solution for high-side driving applications in modern automotive and industrial environments.
