Products specifications

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Sensor Type Digital, Local
Sensing Temperature - Local -40°C to 125°C
Output Type I²C/SMBus
Supply Voltage - Operating 1.4 V to 3.6 V
Resolution 7 b
Features One-Shot, Shutdown Mode
Accuracy - Highest (Lowest) ±2°C (±3°C)
Testing Conditions -10°C to 100°C (-40°C to 125°C)
Temperature Range - Operating -55°C to 150°C
Mounting SMD (SMT)

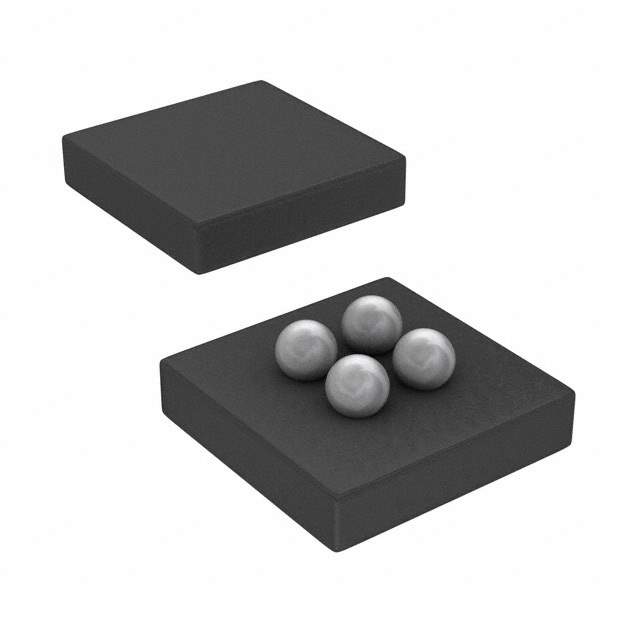

Case / Package 4-DSBGA (1x1)
Win Source Part Number 033227-TMP103DYFFR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TMP103DYFFR CAD Model

Description

The TMP103DYFFR is a high-precision digital temperature sensor manufactured by Texas Instruments, designed for advanced thermal management and measurement applications. This compact sensor is part of the TMP103 series, which is known for its accuracy, low power consumption, and ease of use in various electronic systems.

Key Features

  • Accuracy: The TMP103DYFFR offers an impressive temperature accuracy of ±1°C without the need for calibration, making it a reliable choice for critical applications.
  • Temperature Range: It operates over a wide temperature range from -40°C to +125°C, suitable for diverse environments and conditions.
  • Interface: This sensor communicates through a two-wire I2C/SMBus serial interface, which simplifies integration into existing systems and allows for up to eight devices on the same bus.
  • Low Power: With a low operating current of just 10µA and a standby current of 1µA, the TMP103DYFFR is ideal for battery-powered and energy-sensitive applications.
  • Package: It comes in a compact 4-ball WCSP (Wafer Chip-Scale Package) that is space-efficient, allowing for high-density PCB layouts.

Applications

The TMP103DYFFR is versatile and can be utilized in a variety of applications, including:

  • Portable electronics such as smartphones, tablets, and laptops
  • Industrial controls and automation systems
  • Medical devices and equipment monitoring
  • Environmental monitoring and HVAC systems
  • Power-supply temperature monitoring and management

Why Choose TMP103DYFFR?

Engineers and designers often select the TMP103DYFFR for its precision, low power consumption, and the ability to interface with multiple devices on a single bus, which is especially useful for complex systems requiring multiple temperature readings. The sensor's small footprint also makes it an excellent choice for space-constrained applications. With Texas Instruments' reputation for quality and support, the TMP103DYFFR is a reliable and efficient solution for your temperature sensing needs.
