Littelfuse's compact automotive-grade ESD suppressors withstand up to 30kV transients after multiple ESD strikes

Ideal for automotive antennas, RF antenna systems, infotainment systems and mid- to high-end electronics applications

Designed for high-frequency, high-speed applications, the AXGD Series XTREME-GUARDTM ESD Suppressors offer high voltage ratings (up to 32VDC) and extreme ESD protection. Extremely low leakage current (less than 1nA) is maintained even after multiple ESD strikes. Its ultra-low capacitance ensures compatibility with high-speed data line applications. Available in a 0603 or 0402 package, this family of surface mount devices features a flat, rigid top cover that simplifies the quick placement process for a more compact board design.

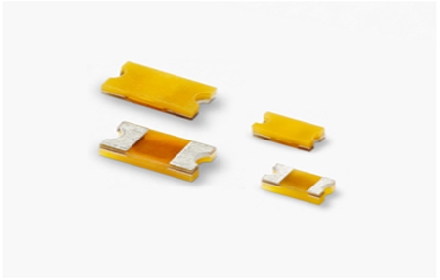

AXGD Series XTREME-GUARDTM ESD Suppressor

Jin Xu, senior product manager at Littelfuse, said: "The AXGD family offers circuit designers similar or better ESD rejection than popular TVS and other ESD suppressors, but with much lower capacitance and leakage current, and The rated voltage is higher.” “As a device that complies with the AEC-Q200 standard, circuit designers will find this series particularly attractive for automotive applications.”

The AXGD Series XTREME-GUARD ESD Suppressor has the following key advantages:

The high voltage rating (24VDC for XGD10402 devices and 32VDC for XGD10603 devices) provides a wider voltage range for more types of electronic devices.

Ultra-low capacitance (only 0.04pF for the XGD10402 device and 0.09pF for the XGD10603 device) makes it ideal for high-frequency, high-speed data, video, antennas, and input/output circuits.
