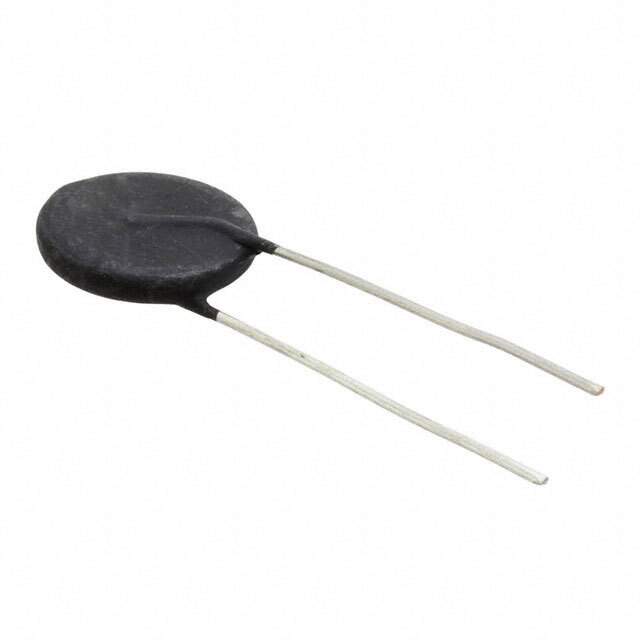

SG110 Real Image
Same model may have multiple batches, images only for reference.

SG110

Part No SG110
Manufacturer Ametherm
Catalog Inrush Current Limiters (ICL)
Description ICL 2 OHM 15% 18A 22.86MM  /  Inrush Current Limiter 2 Ohms ±15% 18 A 0.900" (22.86mm)
Datasheet
SG110 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Inrush Current Limiters (ICL)
Mfr Ametherm
Series SURGE-GARD™
Package Bulk
R @ 25°C 2 Ohms
Tolerance ±15%
Current - Steady State Max 18 A
R @ Current 30 mOhms
Diameter 0.900" (22.86mm)
Lead Spacing 0.310" (7.87mm)
Approval Agency CSA, UR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 570-1146
Standard Package 300
Win Source Part Number 1203259-SG110
Ultra Librarian 3D Model Ultra Librarian SG110 CAD Model

Description

The SURGE-GARD™ ICL from Ametherm is a circuit protection device that is designed to limit inrush current.

  • Type: Inrush Current Limiter
  • Packaging: Bulk
  • Package: 300
  • Tolerance: ±15%
  • Lead Spacing: 0.310 inches (7.87mm)
  • Diameter: 0.900 inches (22.86mm)
  • Resistance @ 25°C: 2 Ohms
  • Maximum Steady-State Current: 18 A
  • Resistance @ Current: 30 mOhms
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8533.40.8070
  • Approvals: CSA and UR
