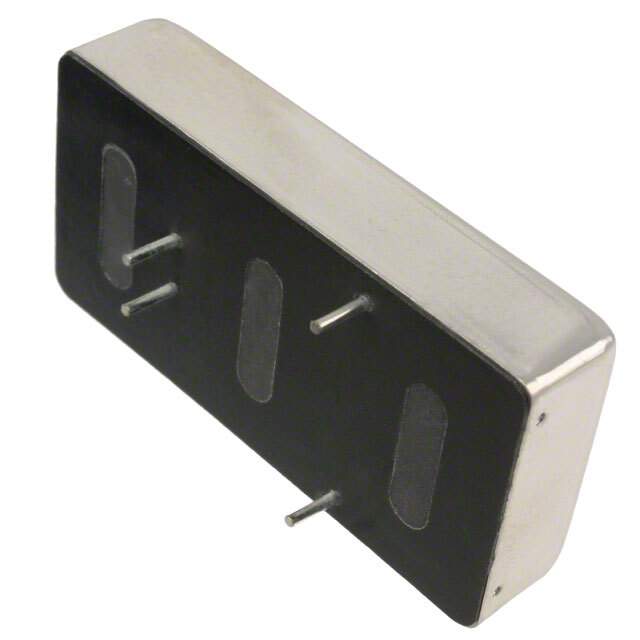

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Artesyn Embedded Technologies
Packaging Tube
Status Obsolete
Type Isolated Module
Voltage - Input (Minimum) 9V
Voltage - Input (Maximum) 36V
Voltage - Output 1 5V
Current - Output (Maximum) 3A
Power (W) 15W
Voltage - Isolation 1.5kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 71°C
Efficiency 84%
Mounting Style Through Hole
Manufacturer Package 4-DIP Module
Parts Dimension 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm)
Manufacturer Pack Quantity 120
MSL Level 1 (Unlimited)
Win Source Part Number 1142804-AEE03A18-L
Manufacturer Homepage www.astecinc.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AEE03A18-L CAD Model

Description

AEE03A18-L is an isolated module type electronic component from Artesyn Embedded Technologies that has a limited supply and demand status.

  • Voltage Isolation: 1.5kV
  • Output Voltage: 5V
  • Application: ITE (Commercial)
  • Power: 15W
  • Maximum Output Current: 3A
  • Efficiency: 84%
  • Temperature Range: -40°C to 71°C
  • Package: 4-DIP module
