Products specifications Report Issue?

Categories Switches
Manufacturer CTS Electrocomponents
Packaging Tube
Circuit SPST
Number of Positions 5
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.359" (9.12mm)
Mounting Style SMT, Right Angle
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Features Epoxy Sealed Terminals
Temperature Range - Operating -40°C ~ 85°C
Body Material Plastic
Length 0.586" (14.88mm)
Electrical Life 7,000 Cycles
Manufacturer Pack Quantity 35
MSL Level Not Applicable
Win Source Part Number 1121552-193-5MS
Manufacturer Homepage www.ctscorp.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 193-5MS CAD Model

Description

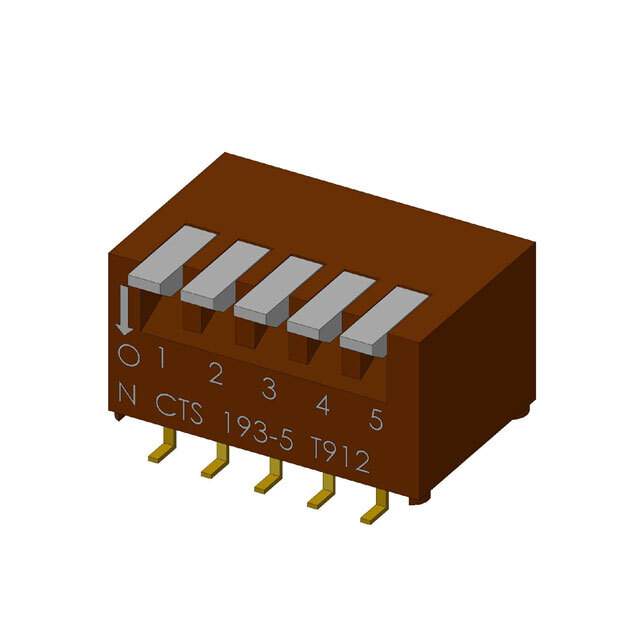

The CTS Electrocomponents 193-5MS is a switch.

  • Circuit: SPST
  • Actuator Type: Piano
  • Positions: Five
  • Voltage Rating: 24VDC
  • Current Rating: 50mA
  • Termination Style: Gull wing
  • Mounting: Right angle SMT
