Products specifications

Category Filters>Power Line Filter Modules
Mfr Delta Electronics
Series DB
Package Box
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 115V, 250V
Current 10 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UR, VDE
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 1.5mH
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 603-1662
Standard Package 84
Win Source Part Number 1034349-10DBAG5
Ultra Librarian 3D Model Ultra Librarian 10DBAG5 CAD Model

Description

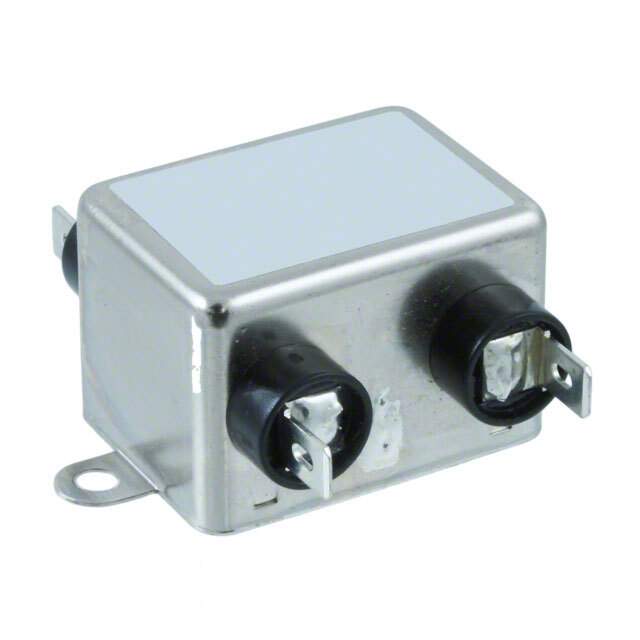

The 10DBAG5 is a power line filter module manufactured by Delta Electronics. Power line filters are designed to suppress electromagnetic interference (EMI) and radio frequency interference (RFI) that can be present on AC power lines. This module helps to ensure that electronic equipment operates reliably and without disruption caused by unwanted noise. They are critical for compliance with regulatory standards and for maintaining the integrity of sensitive electronic systems.

Applications:

  • Industrial Equipment: Protecting sensitive control systems and instrumentation from power line noise.
  • Medical Devices: Ensuring accurate and reliable operation of medical equipment.
  • Information Technology Equipment: Filtering power line noise for servers, computers, and networking devices.
  • Consumer Electronics: Improving the performance and reliability of audio and video equipment.

Features:

  • High Attenuation: Effectively suppresses EMI and RFI noise on power lines.
  • Compact Design: Allows for easy integration into electronic devices.
  • Safety Agency Approvals: Meets industry safety standards for reliable operation.
  • Easy Installation: Simplified wiring and mounting options.
  • Wide Frequency Range: Provides effective filtering across a broad spectrum of frequencies.

Benefits:

  • Improved Equipment Reliability: Protects electronic equipment from damage caused by power line noise.
  • Reduced Interference: Minimizes the impact of EMI and RFI on system performance.
  • Regulatory Compliance: Helps equipment meet required EMI/RFI emission standards.
  • Enhanced Performance: Improves the performance of audio, video, and data communication systems.
  • Cost-Effective Solution: Provides a reliable and affordable way to filter power line noise.

Additional Details:

The 10DBAG5 power line filter module is designed to operate at a specific voltage and current rating. Key specifications include voltage rating, current rating, attenuation characteristics, and leakage current. The filter incorporates inductors and capacitors to effectively suppress EMI and RFI noise. The module is designed for easy installation with screw terminals or other standard connection methods. Safety agency approvals such as UL, CSA, and VDE ensure compliance with safety standards. The filter is designed to operate within a specific temperature range. Proper grounding is essential for optimal performance. Detailed specifications and application notes are available in the product datasheet. The filter is RoHS compliant. It’s important to consult the product datasheet for detailed electrical and mechanical specifications and application guidelines.
