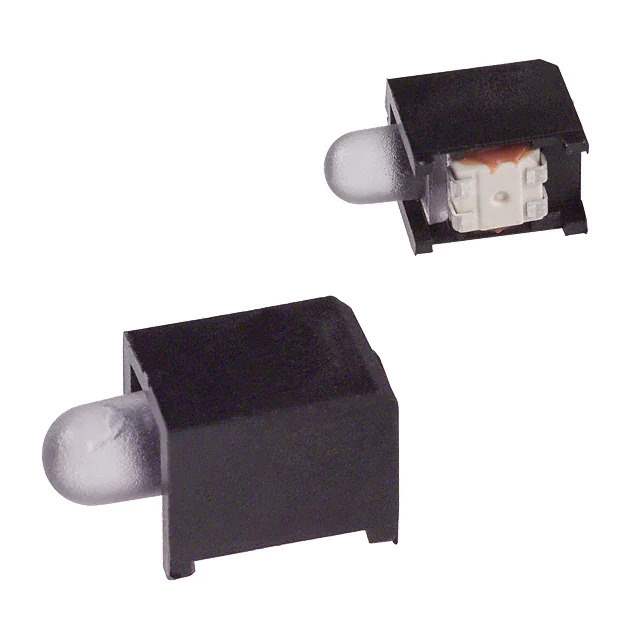

5912501002F Real Image
Same model may have multiple batches, images only for reference.

5912501002F

Part No 5912501002F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED SMD PRISM ORANGE RND LENS / LED Circuit Board Indicator LED Circuit Board Indicator Single Orange Diffused 2V 10mA Round with Flat Top 5.10mm Dia Surface Mount, Right Angle
Datasheet
5912501002F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Dialight
Series 591
Package Bulk
Product Status Obsolete
Color Orange
Wavelength - Peak 606nm
Configuration Single
Current 10mA
Millicandela Rating 13.7mcd
Lens Type Diffused
Lens Style Round with Flat Top
Lens Size 5.10mm Dia
Voltage Rating 2V
Mounting Type Surface Mount, Right Angle
Base Product Number 5912501
Standard Package 20 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
California Prop 65 Warning Information
Win Source Part Number 856608-5912501002F
Ultra Librarian 3D Model Ultra Librarian 5912501002F CAD Model

Description

The 856608-5912501002F is an optoelectronic component from Dialight, specifically designed for circuit board indicators, arrays, light bars, and bar graphs.

  • Series: 591
  • Color: Orange
  • Package: Bulk
  • Standard Package: 20 pieces
  • Voltage Rating: 2V
  • Current: 10mA
  • Lens Type: Diffused
  • Lens Shape: Round, Flat Top
  • Lens Diameter: 5.10mm
  • Millicandela Rating: 13.7mcd
  • Mounting Type: Surface Mount, Right Angle
  • ECCN: Regulations
  • REACH: Unaffected
  • MSL Level: 2 (Shelf Life of 1 Year)
  • HTSUS: 8541.41.0000
  • California Prop 65: Substances Listed
