Products specifications

Categories RF/IF and RFID
Estimated Pruduction Lead Time 7 Weeks
Features IC RF TxRx + MCU Bluetooth Bluetooth v5.0 2.4GHz 28-WFQFN Exposed Pad
Manufacturer EM Microelectronic
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount

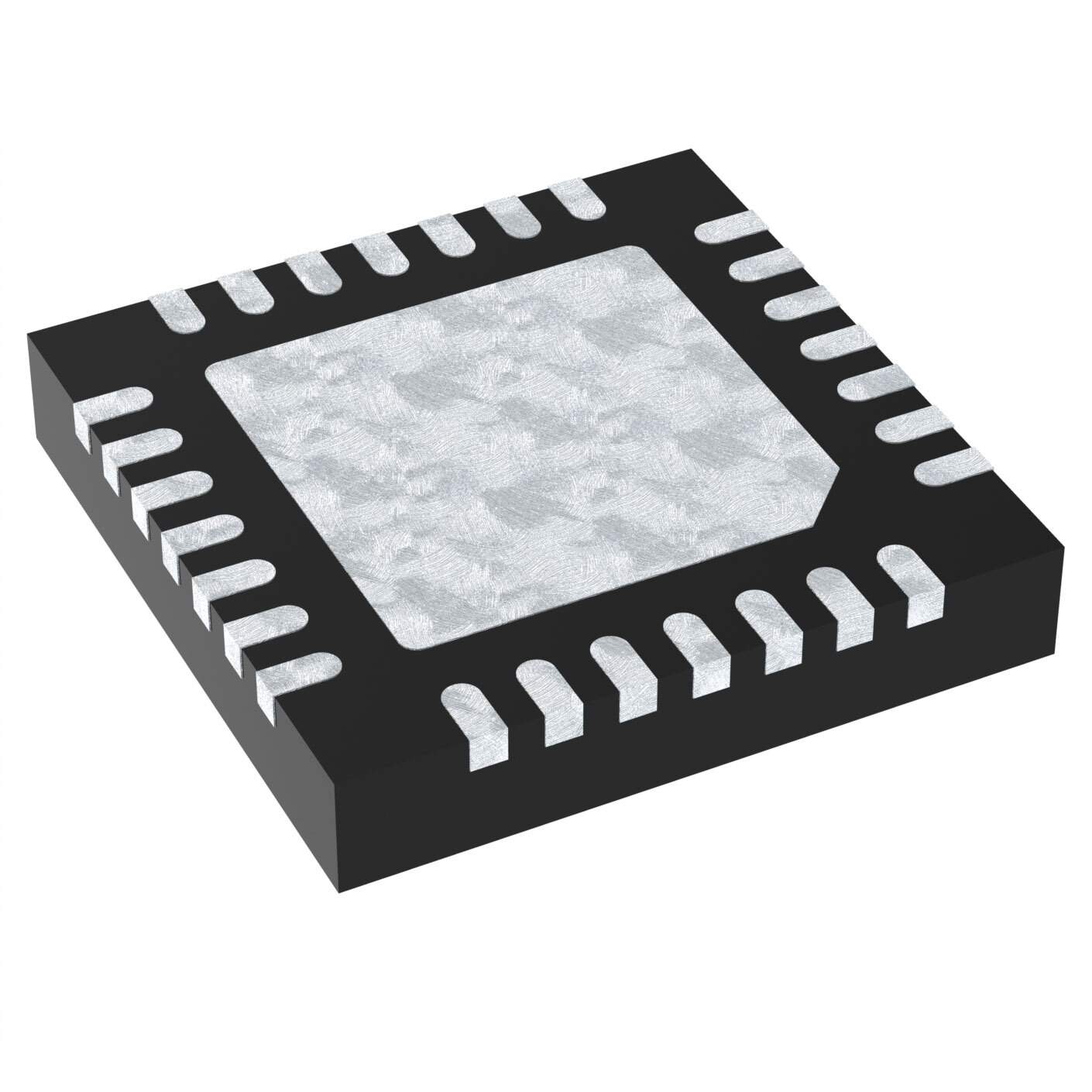

Package 28-WFQFN Exposed Pad
Case / Package 28-QFN (4x4)
Family Name EM9304
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A002A1
HTSUS 8517.62.0090
Other Part Number 2651-EM9304V01LF28BDKR, IC-6459, 2651-EM9304V01LF28BCT, 2651-EM9304V01LF28BTR
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 918034-EM9304V01LF28B
Ultra Librarian 3D Model Ultra Librarian EM9304V01LF28B CAD Model

Description

The EM9304V01LF28B is a RF TxRx + MCU Bluetooth IC that operates on Bluetooth v5.0.

  • Operating Temperature Range: -40°C to 85°C
  • Estimated Production Lead Time: 7 weeks
  • MSL Level: 1 (unlimited)
