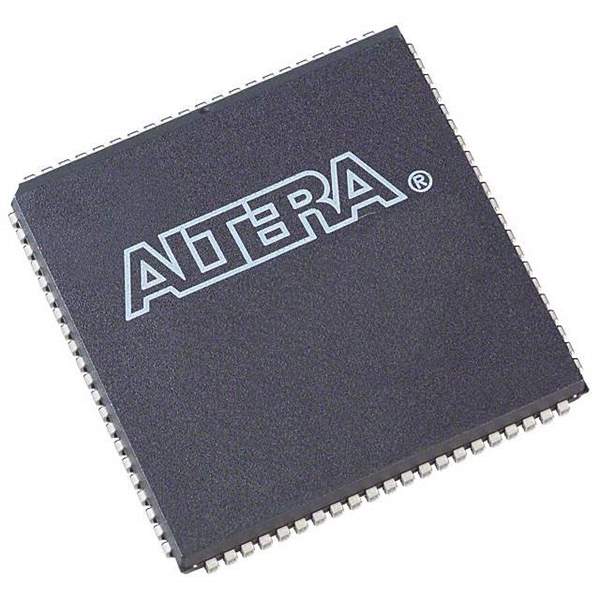

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Intel
Series MAX® 7000
Package Tube
Part Status Obsolete
Number of I/O 68
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 84-LCC (J-Lead)
Case / Package 84-PLCC (29.31x29.31)
Family Name EPM7128
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 544-2322-5, 972213
Quantity per package 15
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844531-EPM7128ELI84-20
Ultra Librarian 3D Model Ultra Librarian EPM7128ELI84-20 CAD Model

Description

The Intel EPM7128ELI84-20 is an obsolete integrated circuit with 68 I/Os. This EPM7128ELI84-20 is part of the MAX® 7000 series and operates within a temperature range of -40°C to 85°C.

  • I/Os: 68
  • Series: MAX® 7000
  • Temperature Range: -40°C to 85°C
  • Package: Surface Mount 84-LCC (J-Lead)
  • Packaging: Tube
  • Family: EPM7128
  • Category: Integrated Circuits (ICs)
  • MSL Level: 3
  • Quantity per Package: 15
  • REACH: Unaffected
