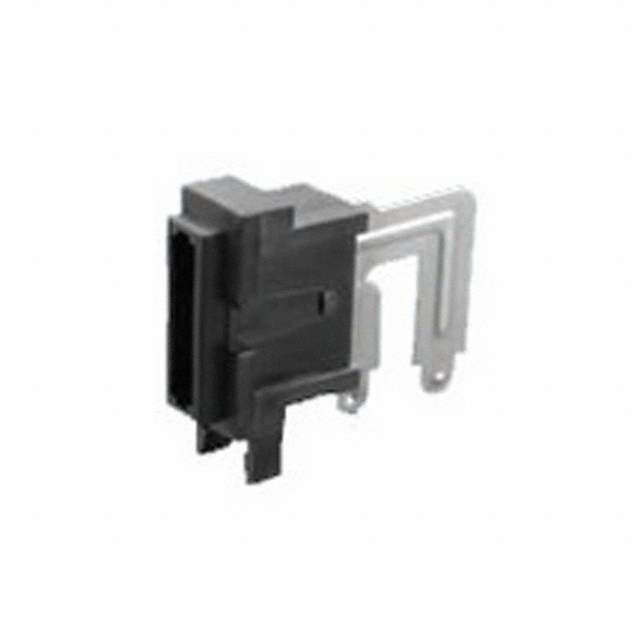

3558 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Keystone Electronics
Series -
Package Bulk
Mounting Type Through Hole
Fuse Size 0.75" L x 0.2" W (19.1mm x 5.1mm)
Current Rating (Amps) 20 A
For Use With/Related Products ATC, ATO
Fuse Type Blade
Fuseholder Type Holder
Number of Circuits 1
Voltage -
Orientation Vertical
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 1 pcs
Win Source Part Number 1380776-3558
Ultra Librarian 3D Model Ultra Librarian 3558 CAD Model

Description

The Keystone Electronics Fuseholder is a reliable and durable electronic component used for circuit protection.

  • Mounting: Through-Hole
  • Package: Bulk
  • Fuse Type: ATC, ATO
  • Current Rating: 20A
  • Contact Material: Brass
  • Status: Active
