Products specifications

RoHS State Request Verification
Manufacturer Linear Technology
Win Source Part Number 1206224-LT1785IS8
Manufacturer Homepage www.linear.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LT1785IS8 CAD Model

Description

The LT1785IS8 is a versatile differential bus/line transceiver from Linear Technology, designed to provide reliable high-speed data communication in demanding environments. This integrated circuit is part of Linear Technology's robust transceiver family and is ideal for industrial, automotive, and networking applications where signal integrity and operational stability are critical.

Key Features

  • High Speed: Capable of handling data rates up to 52Mbps, the LT1785IS8 is perfect for applications that require fast data transfer without sacrificing signal quality.
  • Extended Common Mode Range: The transceiver operates with a common mode range of -7V to 12V, allowing it to function effectively even in electrically noisy environments or over long cable runs.
  • Thermal Protection: With built-in thermal shutdown protection, the device ensures safety and reliability by preventing overheating during extreme operating conditions.
  • Failsafe Receiver: The LT1785IS8 features a failsafe receiver that guarantees a high output state when the inputs are left open or are shorted, minimizing the possibility of erroneous data transmission.
  • Half-Duplex Operation: This transceiver supports half-duplex communication, enabling bidirectional data transfer over a single pair of wires, thus simplifying network design and reducing cable costs.

Applications

The LT1785IS8 is suitable for a wide range of applications, including:

  • Industrial control systems
  • Automotive networks
  • Fieldbus communications
  • Networking equipment
  • Point of Sale (POS) systems

Package and Quality

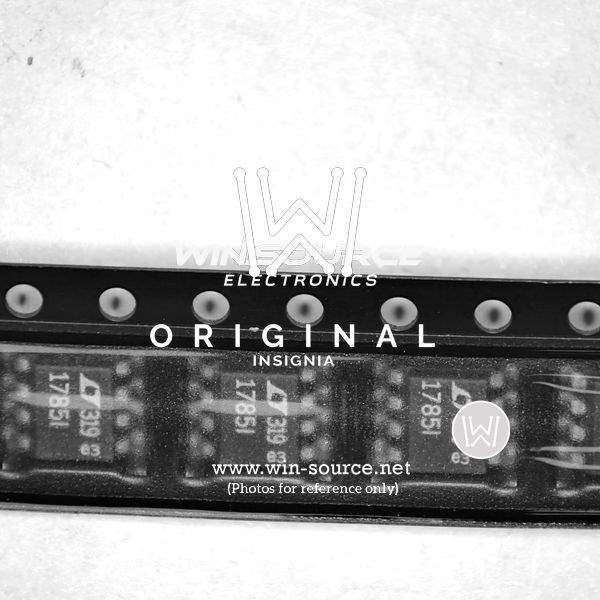

The device is available in an 8-lead SOIC package, which is compact and suitable for space-constrained applications. Linear Technology ensures high-quality standards, and the LT1785IS8 is no exception. It is designed to meet stringent specifications, providing a reliable solution for critical communication systems.
