LT3083IDF#PBF Adjustable Linear Regulator

The LT3083IDF#PBF is a versatile and robust adjustable linear voltage regulator from Linear Technology, designed to cater to a wide range of power supply applications. This device is capable of delivering up to 3A of continuous output current with an output voltage range that can be set from 0V to near the input voltage, providing excellent flexibility for custom voltage settings.

Constructed with an advanced architecture, the LT3083IDF#PBF features a precision reference followed by a high-performance operational amplifier to ensure high accuracy and optimal loop stability. The dropout voltage is low, at just 310mV per ampere of output current, which allows for efficient operation even with a small difference between the input and output voltages, reducing power loss and improving efficiency.

One of the distinctive features of the LT3083IDF#PBF is its extended safe operating area (SOA). The internal protection circuitry includes overcurrent and overtemperature protection, which safeguards the device and the load under abnormal conditions. The regulator also provides a power good flag, which signals when the output voltage is within the regulation limits, adding an extra layer of reliability to the system.

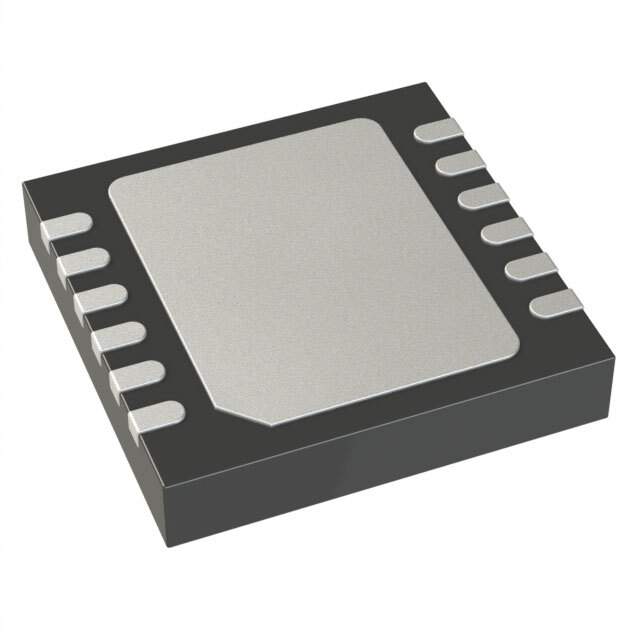

The LT3083IDF#PBF is available in a 12-lead DFN package which is designed for a compact footprint and enhanced thermal performance. This package, combined with the need for only a single resistor to set the output voltage, makes it an ideal choice for space-constrained applications that require a simple and efficient power management solution.

Applications for this regulator are diverse and include power supplies for battery-operated devices, industrial equipment, automotive electronics, and precision instrumentation. The ability to configure the output voltage and the robust protection features make the LT3083IDF#PBF a highly adaptable component that can be tailored to meet the specific needs of various electronic systems.

Overall, the LT3083IDF#PBF from Linear Technology is a reliable and flexible solution for any design requiring a high-quality adjustable linear regulator.
