MAXM15066EVKIT# Evaluation Kit by Maxim Integrated

The MAXM15066EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed for the MAXM15066 step-down DC-DC converter module. This evaluation kit enables engineers to thoroughly test the capabilities and performance of the MAXM15066 module in a variety of applications, ensuring that it meets the specific design requirements of their projects.

Product Features

• Integrated step-down power module with a 4.5V to 42V input voltage range, providing flexibility across various supply voltages.
• Adjustable output voltage from 0.9V to 0.9 x VIN, allowing for a wide range of output voltage settings to match the needs of different circuits.
• Capable of delivering up to 3.5A of output current, suitable for powering a variety of low-power to medium-power applications.
• High-efficiency, compact design that minimizes power loss and saves board space.
• Integrated components including inductor and passives to reduce external component count and simplify design.
• Overcurrent protection, overvoltage protection, and thermal shutdown features enhance the safety and reliability of the power supply.

Kit Contents

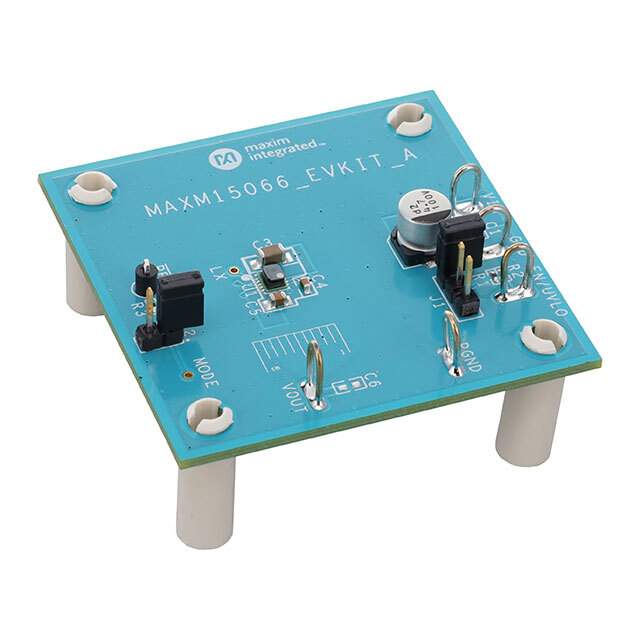

• Fully assembled and tested evaluation board for the MAXM15066.
• USB interface for easy connection and control.
• On-board jumpers and connectors for configuring the evaluation board and for easy probing and measurement.
• Comprehensive documentation including schematics, layout files, and a detailed user guide to facilitate quick setup and experimentation.

Applications

The MAXM15066EVKIT# is ideal for testing the MAXM15066 in a variety of applications such as:

• Point of Load (POL) power supplies.
• Industrial control and automation systems.
• Automotive and transportation.
• Telecommunications equipment.
• Networking devices and servers.

With the MAXM15066EVKIT#, designers and engineers have a powerful tool to streamline the development process and ensure that their power supply designs are robust, efficient, and ready for integration into their final products.
