Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V (Max)
Voltage - Breakdown (Min) 16.7V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 300W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.8pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 135961-GBLC15C
Ultra Librarian 3D Model Ultra Librarian GBLC15C CAD Model

Description

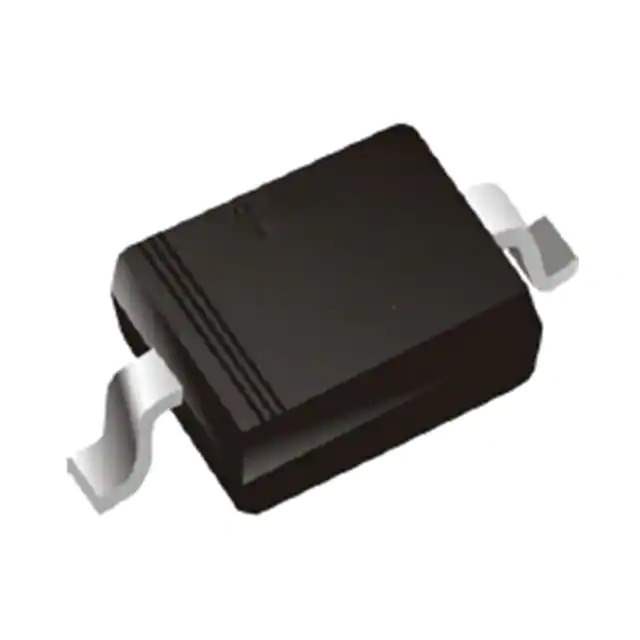

The MDD 135961-GBLC15C TVS Diode is a reliable and efficient circuit protection component. It is part of the SOD-323 series, known for its high-quality and performance. This TVS diode is of the Zener type, making it suitable for general-purpose applications. It is packaged in tape and reel, with a standard package of 6,000 pieces, ensuring convenience and ease of use.

  • Reverse Standoff Voltage: 15V
  • Breakdown Voltage: 16.7V
  • Peak Pulse Power: 300W
  • Capacitance: 0.8pF @ 1MHz
  • Operating Temperature: -55°C to 150°C
  • Mounting Type: Surface Mountable
