The DSC6023HI2A-00A9 is a cutting-edge MEMS oscillator from the renowned manufacturer Microchip Technology. This compact and high-performance device is designed to deliver exceptional stability and precision in a variety of electronic applications. With its advanced features and robust construction, it is an ideal choice for engineers looking to enhance their system designs.

Key Features

• Frequency Range: The oscillator operates at a pre-configured frequency of 9MHz, providing a stable clock output for your critical applications.
• Supply Voltage: It requires a supply voltage of 2.25V to 3.6V, making it versatile for use in various circuit configurations.
• Stability: The DSC6023HI2A-00A9 offers excellent frequency stability, ensuring reliable performance even under varying environmental conditions.

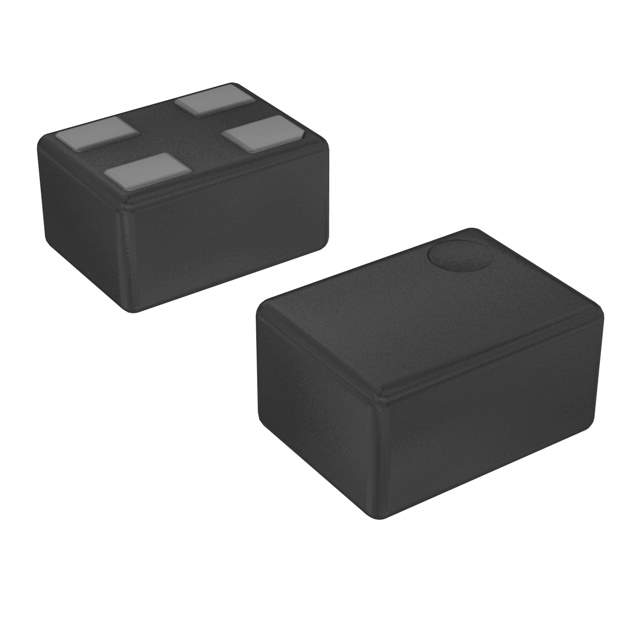

• Form Factor: Housed in a compact 4-SMD, no lead package, it occupies minimal space on the PCB, allowing for efficient use of board real estate.
• Temperature Range: This device can operate over an industrial temperature range from -40°C to +85°C, ensuring functionality in harsh environments.
• Output Type: It provides a CMOS output, which is compatible with most digital logic families, facilitating easy integration into existing designs.

Applications

The DSC6023HI2A-00A9 is suitable for a wide range of applications, including but not limited to:

• IoT devices
• Wearable technology
• Smart home systems
• Industrial control systems
• Networking equipment
• Consumer electronics

Microchip's commitment to quality ensures that the DSC6023HI2A-00A9 oscillator is not only high-performing but also reliable and durable. Its ease of integration and robust feature set make it an excellent choice for designers looking to streamline their product development while maintaining high standards of performance and stability.
