Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube
Output Type Adjustable
Voltage - Input (Maximum) 6V
Min/Fixed Output Voltage 1.24V
Maximum Output Voltage 6V
Maximum Dropout Voltage 0.5V at 750mA
Output Current 750mA
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 8-TSSOP, 8-MSOP
Supplier Device Package 8-MSOP
Family Part Number MIC3775
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1222490-MIC3775BMM
Manufacturer Homepage www.micrel.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MIC3775BMM CAD Model

Description

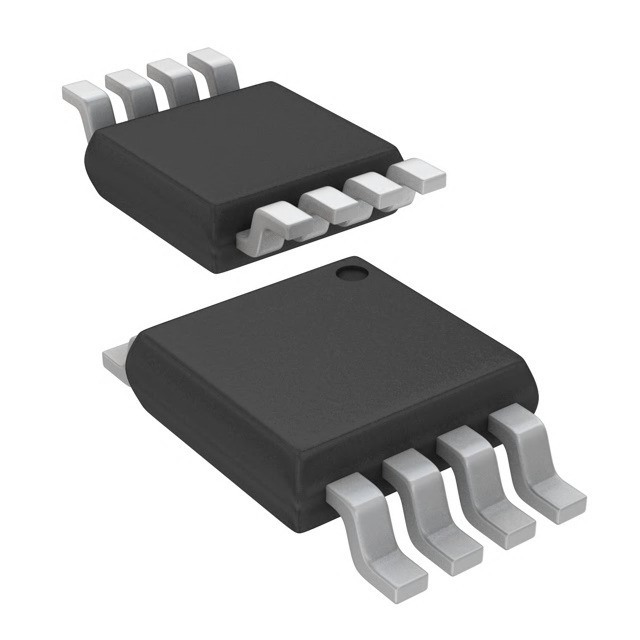

Microchip Technology's MIC3775BMM: A High-Performance Voltage Regulator

The MIC3775BMM from Microchip Technology is a highly efficient, synchronous buck (step-down) regulator designed to provide a compact and reliable power management solution. This voltage regulator is capable of delivering up to 2A of continuous output current with excellent load and line regulation. The MIC3775BMM is an ideal choice for a wide range of applications, including portable devices, networking equipment, and industrial systems where space is at a premium and power efficiency is crucial.

Featuring an input voltage range of 2.7V to 5.5V, the MIC3775BMM can operate from standard 3.3V or 5V power rails with ease. Its output voltage is adjustable from 1V to VIN, allowing for a high degree of flexibility to meet the needs of various circuits. The regulator utilizes a constant frequency, current mode control architecture that provides fast transient response and excellent loop stability.

The MIC3775BMM comes in a compact 10-pin MSOP (Mini Small Outline Package) footprint, which is highly advantageous for space-constrained applications. Moreover, this device integrates a range of protective features to ensure the longevity and reliability of your electronic designs. These include under-voltage lockout (UVLO), thermal shutdown, and over-current protection (OCP), safeguarding your system against a variety of common electrical issues.

With its high efficiency, which can reach up to 95%, the MIC3775BMM minimizes power loss and heat generation, thereby reducing the need for elaborate cooling solutions. This makes it an excellent choice for battery-powered applications where extending operational life is critical. Additionally, the regulator supports a switching frequency of up to 4MHz, allowing the use of small, low-cost inductors and capacitors, further reducing the overall solution size and bill of materials cost.

In summary, the MIC3775BMM from Microchip Technology is a versatile and robust voltage regulator that combines high efficiency, adjustable output, and a suite of protective features in a small package. It is an excellent choice for engineers looking for a power management solution that does not compromise on performance or space.
