The MIC49300BR is a high-performance, low-dropout linear voltage regulator from Microchip Technology, designed to deliver a continuous output current of up to 3A with a dropout voltage of just 500mV at full load. This robust regulator is an ideal choice for high-current applications where voltage regulation with minimal power loss is crucial.

Key Features

• High Output Current: Capable of delivering up to 3A of continuous output current, making it suitable for demanding applications.
• Low Dropout Voltage: The MIC49300BR offers an impressive dropout voltage of only 500mV at full load, which enhances efficiency and reduces power dissipation.
• Wide Input Voltage Range: This regulator operates over a broad input voltage range from 1.65V to 6V, providing versatility in various power supply designs.
• Adjustable Output Voltage: The output voltage is adjustable from 1.24V to 5.5V, allowing for custom voltage levels according to specific application needs.
• Stable with Ceramic Output Capacitors: It is stable with low-ESR ceramic output capacitors, which reduces the size and cost of the overall power supply design.
• Thermal and Overcurrent Protection: The MIC49300BR features built-in thermal shutdown and current-limit protection mechanisms to safeguard the device and the system under extreme conditions.
• Fast Transient Response: The regulator provides excellent transient response, maintaining stable output voltage during rapid load changes.

Applications

The MIC49300BR is suitable for a wide range of applications, including:

• High-performance computing
• FPGA and DSP power supplies
• Networking and telecommunications equipment
• Server and storage systems
• Industrial and medical equipment

Package and Reliability

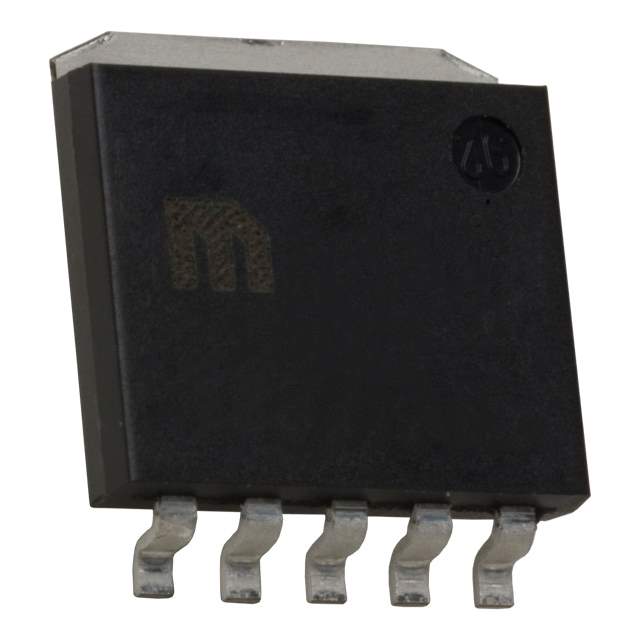

The MIC49300BR comes in a robust TO-263 (D2PAK) package, ensuring excellent thermal performance and reliability. Microchip Technology's commitment to quality means that this regulator is designed to meet the high standards required for commercial and industrial applications.
