Products specifications

Category Circuit Protection>TVS - Diodes
Mfr Microchip Technology
Package Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 20.4V
Voltage - Clamping (Max) @ Ipp 31V
Current - Peak Pulse (10/1000µs) 4.9A (8/20µs)
Power - Peak Pulse 150W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case SQ-MELF, A
Supplier Device Package A-MELF
Base Product Number TVS318
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 1
Win Source Part Number 1090681-TVS318SM
Ultra Librarian 3D Model Ultra Librarian TVS318SM CAD Model

Description

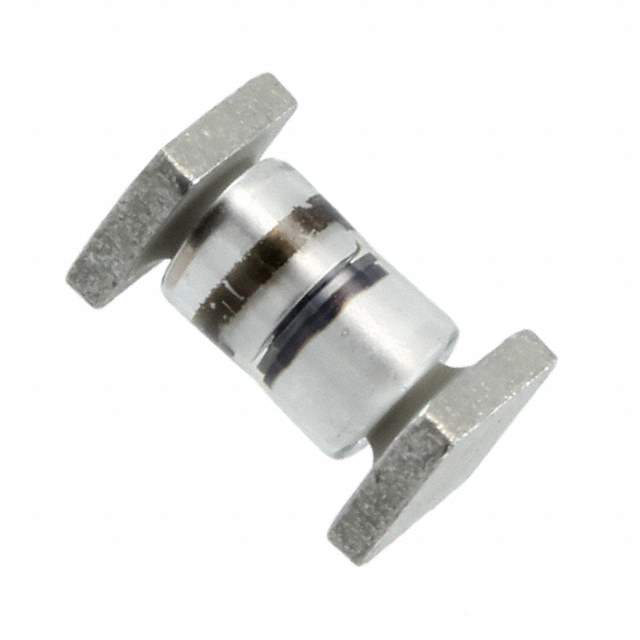

Microchip Technology's TVS318SM: Robust ESD Protection in a Small Package

Microchip Technology's TVS318SM is a state-of-the-art ESD (Electrostatic Discharge) protection device designed to shield sensitive electronic components from the potentially damaging effects of electrostatic discharge events. This product is a part of Microchip's extensive portfolio of circuit protection devices, which are engineered to provide reliable and robust protection in a variety of applications.

Key Features

  • Transient Protection: The TVS318SM is capable of withstanding ESD events in accordance with the IEC 61000-4-2 standard, ensuring that the protected components can handle direct contact discharges as well as air discharges.
  • Low Clamping Voltage: It offers a low dynamic resistance and clamping voltage, which is crucial for safeguarding modern, sensitive electronic circuits from high transient voltages while minimizing the impact on the signal integrity.
  • Small Package Size: Designed in a compact SOD-323 package, the TVS318SM is ideal for space-constrained applications, allowing designers to incorporate ESD protection without compromising on board space.
  • High Surge Capability: With its capability to handle high surge currents, this device ensures that your electronics are protected in harsh environments where surge events are likely.

Applications

The versatility of the TVS318SM makes it suitable for a wide range of applications, including:

  • Mobile and portable devices
  • Data lines and USB interfaces
  • Microcontroller input protection
  • Wireless communication systems
  • Power supply protection

Microchip's commitment to quality ensures that the TVS318SM is manufactured to the highest standards, providing reliable protection when it matters most. Whether it's for consumer electronics, industrial applications, or communication infrastructure, the TVS318SM offers an effective solution for protecting sensitive circuits from the dangers of ESD, thus extending the longevity and reliability of your products.

With its combination of features, the TVS318SM from Microchip Technology stands out as a leading choice for designers looking to enhance the ESD robustness of their systems without compromising on performance or space.
