Same model may have multiple batches, images only for reference.

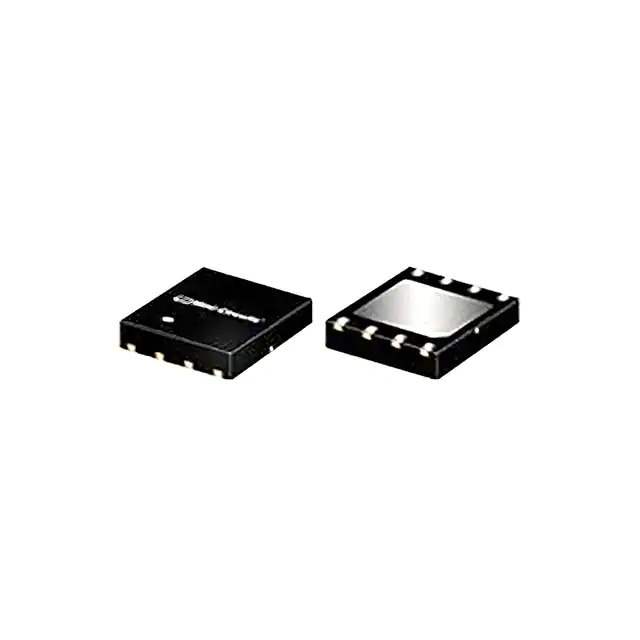

PHA-202+ Real Image
Same model may have multiple batches, images only for reference.

PHA-202+

Part No PHA-202+
Manufacturer Mini-Circuits
Catalog RF Amplifiers
Description IC RF AMP CATV 30MHZ-2.7GHZ 8DFN
Datasheet
PHA-202+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 30MHz ~ 2.7GHz
P1dB 30.4dBm
Gain 12.7dB
Noise Figure 5.4dB
RF Type CATV, LTE
Voltage - Supply 11V
Current - Supply 350mA
Test Frequency 1GHz
Mounting Type Surface Mount
Package / Case 8-TDFN Exposed Pad
Supplier Device Package 8-DFN (4.9x6)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 847101-PHA-202+
Ultra Librarian 3D Model Ultra Librarian PHA-202+ CAD Model

Description

The PHA-202+ is an RF amplifier from Mini-Circuits. It falls under the category of RF amplifiers and is designed for CATV and LTE applications.

  • Applications: CATV and LTE
  • Packaging: Tape and Reel
  • Standard Package: 2,000 pieces
  • Test Frequency: 1GHz
  • Frequency Range: 30MHz to 2.7GHz
  • Gain: 12.7dB
  • Noise Figure: 5.4dB
  • Current Supply: 350mA
  • P1dB: 30.4dBm
  • RF Types: CATV and LTE
  • Voltage Supply: 11V
  • Mounting Type: Surface Mount
  • Package/Case: 8-TDFN Exposed Pad
  • Supplier Device Package: 8-DFN (4.9x6)
