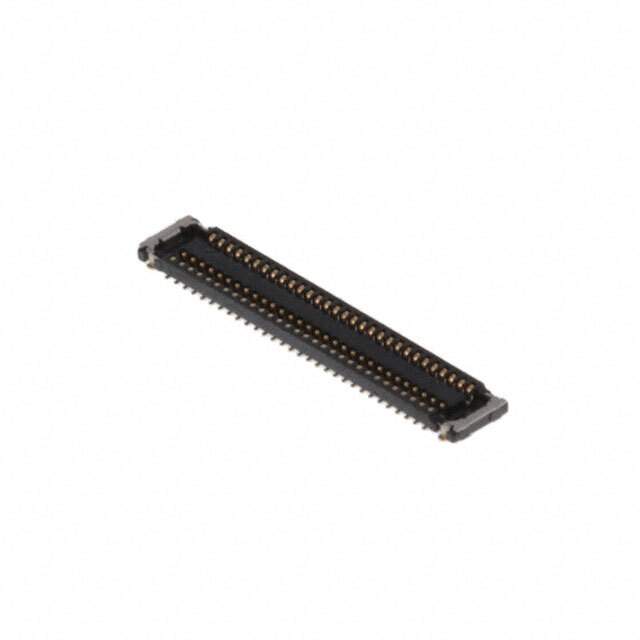

5037726010 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1005912-5037726010
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 5037726010 CAD Model

Description

The Molex, LLC 1005912-5037726010 is a connector with 60 positions and a pitch of 0.016" (0.40mm).

  • Positions: 60 positions
  • Pitch: 0.016" (0.40mm)
  • Feature: Solder retention
  • Type: Receptacle with outer shroud contacts
  • Rows: Two rows
  • Contact Finish: Gold contact finish
  • Mated Stacking Heights: 0.8mm
  • Height Above Board: 0.026" (0.65mm)
  • Mounting: Surface mounted
  • Packaging: Reel-TR
  • Family: Connectors, Interconnects
  • Status: Active
  • Supply and Demand Status: Sufficient
