The NXP BAS40XY series represents a range of high-performance Schottky diodes designed to offer efficient, low voltage rectification with minimal power loss. These diodes are particularly well-suited for high-frequency applications and are commonly used in power management tasks, switch-mode power supplies, and as polarity protection devices.
Key Features
- Low Forward Voltage Drop: The BAS40XY series is engineered to provide a low forward voltage drop, which enhances overall efficiency by reducing power dissipation during operation.
- High Switching Speed: These Schottky diodes are capable of very fast switching, making them ideal for high-frequency applications where rapid switching is essential.
- Low Capacitance: The low diode capacitance of the BAS40XY series facilitates faster switching and better signal integrity, which is especially beneficial in RF and high-speed digital circuits.
- Surface-Mount Package: Available in a variety of surface-mount packages, these diodes are designed for automated assembly processes and are suitable for high-density circuit board designs.
Applications
- DC-DC converters
- Mobile devices
- Power management systems
- Automotive applications
- Reverse polarity protection circuits
Product Specifications
Parameter
Value

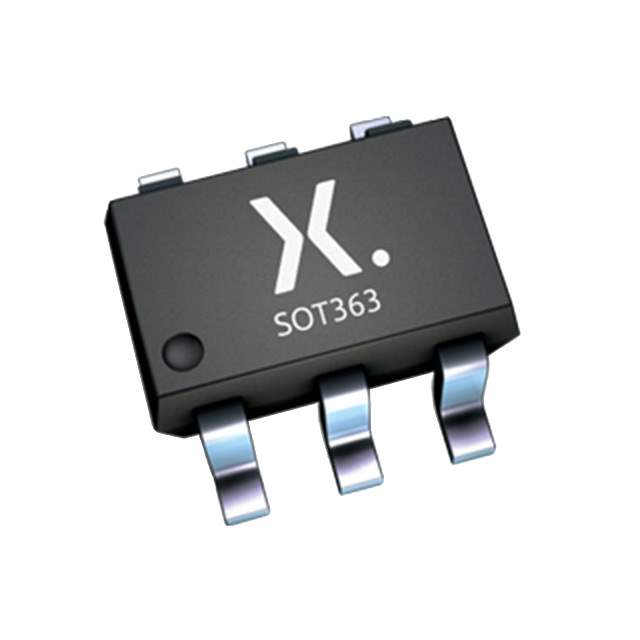

Package
SOT-23, SOT-323, SOT-143
Peak Reverse Voltage
40 V
Forward Current (IF)
200 mA
Max Forward Voltage
1 V @ IF 100 mA
Operating Temperature Range
-55°C to +125°C
With its robust design and reliable performance, the NXP BAS40XY Schottky diode series is a top choice for designers looking to optimize their power management systems. These diodes are not only efficient but also versatile, making them a valuable component in a wide range of electronic devices.
