Products specifications

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr NXP
Series MPX10
Package Tray
Product Status Active
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 1.45PSI (10kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 35 mV (3V)
Accuracy ±1%
Voltage - Supply 3V ~ 6V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Termination Style PC Pin
Maximum Pressure 10.88PSI (75kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case 4-SIP Module
Base Product Number MPX10
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 846933-MPX10GP
Ultra Librarian 3D Model Ultra Librarian MPX10GP CAD Model

Description

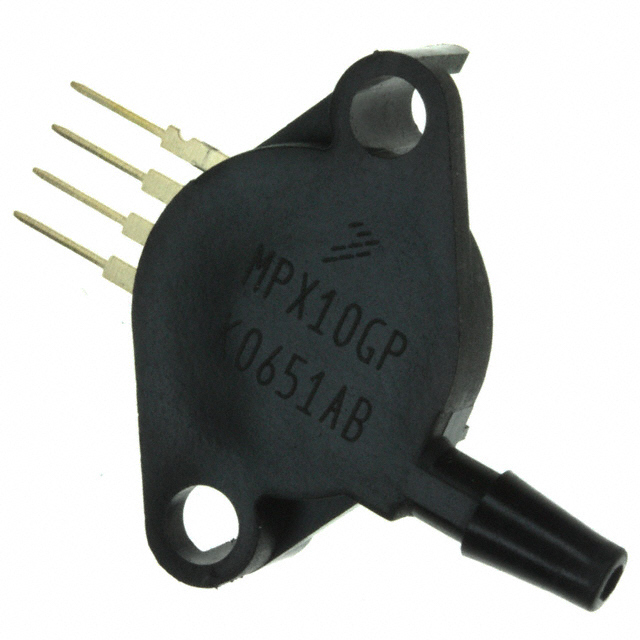

Product Overview: NXP MPX10GP Pressure Sensor

The NXP MPX10GP is a state-of-the-art pressure sensor that offers a reliable and accurate solution for a wide range of applications, from medical devices to industrial control systems. This versatile sensor is designed to measure absolute pressure, which means it provides readings relative to a perfect vacuum, rather than ambient atmospheric pressure.

Key Features

  • Pressure Range: The MPX10GP is capable of measuring pressure from 0 to 10 kPa, making it suitable for low-pressure applications.
  • Sensitivity: It features a high sensitivity of 40 mV/kPa, ensuring precise measurements even with small pressure changes.
  • Supply Voltage: The device operates on a supply voltage of 3.0 V to 6.0 V, providing flexibility in various circuit designs.
  • Temperature Compensated: The MPX10GP includes temperature compensation from 0°C to +85°C, which guarantees consistent performance across a wide range of operating conditions.
  • Uncompensated: This model is the uncompensated version, allowing users to implement their own compensation techniques or to use the sensor in controlled environments.
  • Small Form Factor: With its small size, the MPX10GP is ideal for applications where space is at a premium.

Applications

The MPX10GP pressure sensor is well-suited for a variety of applications, including but not limited to:

  • Pneumatic control systems
  • Healthcare equipment such as blood pressure monitors
  • Environmental monitoring devices
  • Industrial process control
  • Level indicators for liquids and gases

Quality and Reliability

NXP is renowned for its commitment to quality and reliability, and the MPX10GP is no exception. It is built to the highest standards, ensuring that it not only meets but exceeds the requirements of the most demanding applications. With its robust design and proven performance, the MPX10GP is a sensor you can count on for precise pressure measurements.
