Products specifications

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bipolar
Applications General Purpose
Output Current 800mA
Supply Voltage - Operating 2.5 V to 9.5 V
Voltage - Load 2.5 V to 9.5 V
Temperature Range - Operating -20°C to 85°C (TA)
Mounting SMD (SMT)

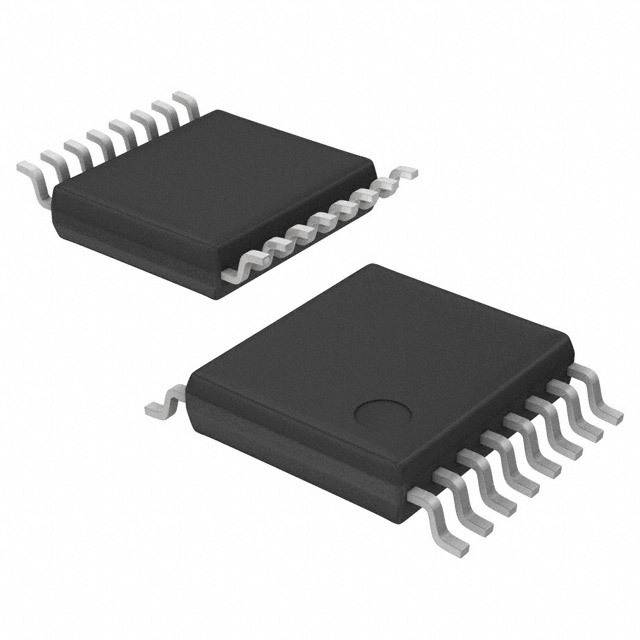

Case / Package 16-SSOP
Win Source Part Number 070709-LB1936V-MPB-E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LB1936V-MPB-E CAD Model

Description

ON Semiconductor's LB1936V-MPB-E Motor Driver

The LB1936V-MPB-E is a high-performance, low-voltage motor driver designed by ON Semiconductor, a leading provider of semiconductor solutions aimed at driving energy-efficient innovations. This motor driver is specifically engineered to cater to the demands of modern, compact, and low-power applications. It is an ideal choice for designers looking to control small DC motors with precision and efficiency.

At the heart of the LB1936V-MPB-E motor driver is its capability to operate with a supply voltage ranging from 2.5V to 9V, making it versatile for various battery-operated devices. The device boasts a maximum output current of 1A, which is sufficient for driving small motors without the need for external heat sinks or complex cooling systems. This feature significantly simplifies the design and reduces the overall cost of the final product.

The LB1936V-MPB-E comes in a compact package, specifically the SSOP-B8, which is known for its small footprint. This package is advantageous for space-constrained applications, allowing for more efficient use of circuit board real estate. The motor driver integrates two H-bridge drivers, which enables control of the direction and speed of two DC motors or one stepping motor, providing flexibility in various motor control applications.

Furthermore, the LB1936V-MPB-E includes built-in features such as thermal shutdown circuitry and low saturation voltage, ensuring the safety and longevity of the motor driver. The thermal shutdown feature protects the device from overheating, while the low saturation voltage minimizes power loss and improves efficiency during operation.

Overall, ON Semiconductor's LB1936V-MPB-E motor driver is a reliable and efficient solution for designers looking to drive small motors in portable devices, toys, and other low-voltage applications. Its compact size, integrated features, and ease of use make it an excellent choice for a wide range of motor control needs.

To incorporate the LB1936V-MPB-E into your design, please consult the detailed datasheet provided by ON Semiconductor for comprehensive electrical specifications, pin configurations, and application guidelines.
