Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 500pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SB54
Standard Package 1,250 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 313662-SB540
Ultra Librarian 3D Model Ultra Librarian SB540 CAD Model

Description

The ON Semiconductor SB540 is a high-performance Schottky Barrier Rectifier designed to meet the rigorous requirements of industrial, commercial, and high-end power management applications. This rectifier is well-suited for use in low voltage, high-frequency inverters, free-wheeling, and polarity protection applications.

Key Features

  • Voltage Range: The SB540 offers a maximum repetitive peak reverse voltage of 40V, making it suitable for a variety of low voltage applications.
  • Current Capacity: With a high forward surge current of 150A and an average rectified forward current of 5.0A, this device can handle significant power and is ideal for high-load situations.
  • Low Power Loss: High efficiency is achieved through its low forward voltage drop and rapid switching capabilities, ensuring minimal power loss during operation.
  • Thermal Performance: The SB540 is encapsulated in a robust package that enhances thermal conductivity and allows for superior heat dissipation, contributing to its reliability and longevity.
  • Guard Ring Die Construction: Its guard ring design provides transient over-voltage protection, enhancing the device's ruggedness and reliability.

Physical Characteristics

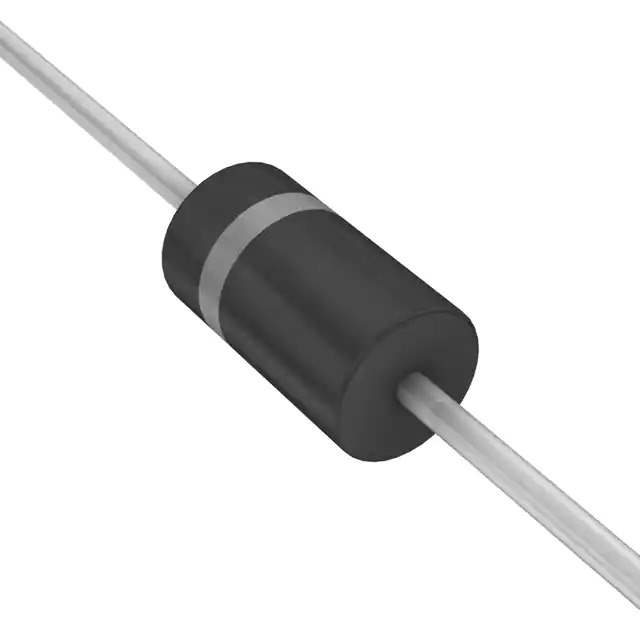

  • The device is housed in an axial-lead, transfer-molded plastic package that ensures protection from physical damage and environmental factors.
  • Its lead-free finish and RoHS compliance ensure that it meets current environmental standards for electronic components.
  • The package is designed for easy installation, with leads that are readily solderable and compatible with standard PCB mounting techniques.

Applications

The SB540's robust design and electrical characteristics make it an excellent choice for a wide range of applications, including:

  • Switching power supplies
  • Converters
  • Free-wheeling diodes
  • Reverse battery protection
  • DC-to-DC converters
  • Automotive applications

With its combination of performance, efficiency, and reliability, the ON Semiconductor SB540 Schottky Barrier Rectifier is a valuable component for designers seeking to optimize their power management systems.
