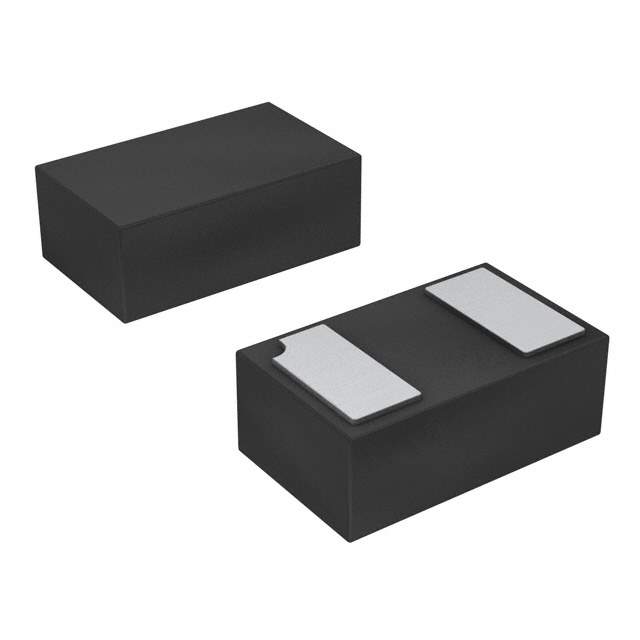

The PJSD05FN2 is a Transient Voltage Suppressor (TVS) diode manufactured by Panjit. It is designed to protect sensitive electronic components from voltage transients induced by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning surges. This device offers a robust and reliable solution for safeguarding circuits in a variety of applications.

Applications

• Mobile Phones: Protecting I/O ports and power lines from ESD strikes.
• Portable Devices: Ensuring the longevity and reliability of handheld electronics.
• Networking Equipment: Safeguarding Ethernet ports and other communication interfaces.
• Consumer Electronics: Protecting sensitive components in televisions, set-top boxes, and audio equipment.
• Industrial Equipment: Providing robust protection in harsh industrial environments.

Features

• Low Clamping Voltage: Provides excellent protection by limiting the voltage spike seen by the protected circuit.
• Fast Response Time: Quickly reacts to transient events, minimizing the risk of damage.
• Small Package Size: Allows for compact designs and easy integration into existing circuits.
• High Surge Capability: Withstands high surge currents, ensuring reliable protection even in demanding applications.
• RoHS Compliant: Environmentally friendly, meeting the requirements of RoHS directives.

Benefits

• Enhanced Reliability: Protects electronic circuits from damaging voltage transients, extending their lifespan.
• Reduced Downtime: Minimizes the risk of equipment failure due to ESD and surge events.
• Improved System Performance: Ensures stable and reliable operation by preventing voltage spikes from disrupting circuit function.
• Cost Savings: Reduces the need for costly repairs and replacements.
• Simplified Design: Easy to implement and integrates seamlessly into existing circuit designs.

Technical Specifications

The PJSD05FN2 has a typical breakdown voltage of 6.0V and a maximum clamping voltage of 9.5V at a specified peak pulse current. It features a low reverse leakage current and a fast response time, making it ideal for protecting high-speed data lines. The device is available in a small surface-mount package, such as SOT-23 or similar, and is designed for automated assembly.

The device is designed to meet industry standards for ESD protection, such as IEC 61000-4-2, and provides a high level of protection against electrostatic discharge events. Its robust design and reliable performance make it a suitable choice for a wide range of applications where transient voltage protection is critical.
