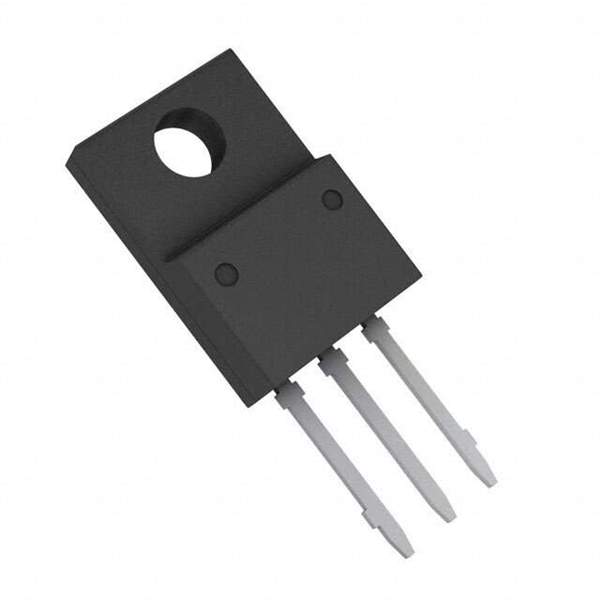

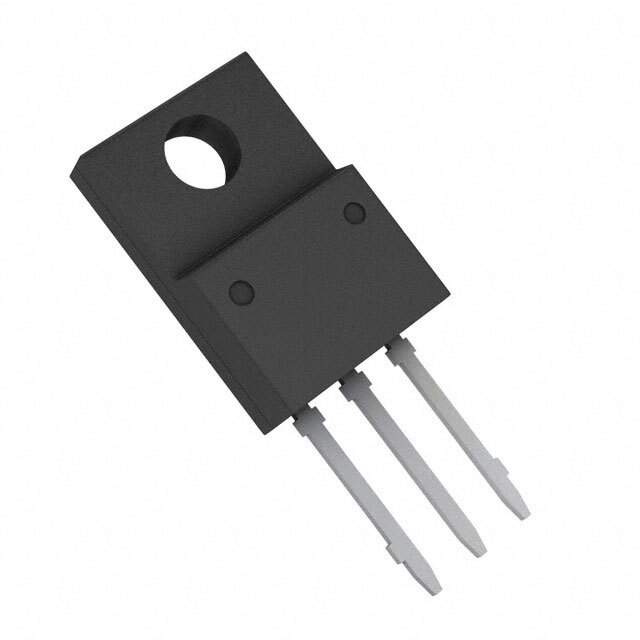

BA17820CP-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel package
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 33V
Output Voltage 20V
Voltage Dropout (Maximum) 2V @ 1A (Typ)
Output Current 1A
Operating Supply Current 4.5mA ~ 6mA
PSRR 60dB (120Hz)
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package TO-220-3 Cropped Leads
Manufacturer Package TO-220-3
Win Source Part Number 769655-BA17820CP-E2
Popularity Medium
Supply and Demand Status Limited
Family Name BA17820
Introduction Date December 03, 2007
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BA17820CP-E2 CAD Model

Description

The BA17820CP-E2 is a fixed positive voltage regulator manufactured by Rohm Semiconductor.

  • Output Voltage: 20V
  • Maximum Input Voltage: 33V
  • Package: TO-220-3 (Cropped Leads)
  • Dropout Voltage: 2V @ 1A
  • Current Rating: 1A
  • Operating Temperature: -40°C to 85°C
  • Series: BA17820
  • PSRR: 60dB (120Hz)
  • Operating Supply Current: 4.5mA to 6mA
  • Alternatives: KIA7820API, L7820ACP, L7820ABP, L7820CP
  • Introduction Date: December 2007
  • EOL Date: 2026 (Estimated)
