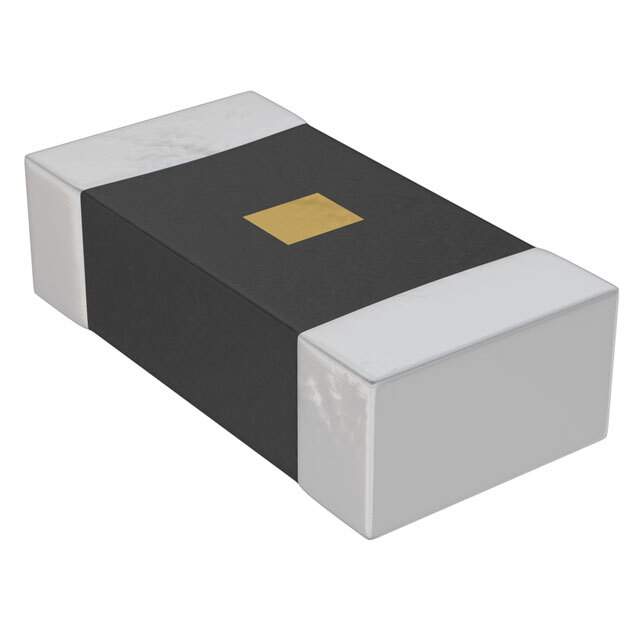

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Resistance 1 kOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Automotive AEC-Q200, High Voltage
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number RHM1.00KAHDKR,RHM1.00KAHCT,RHM1.00KAHTR
Standard Package 5,000
Win Source Part Number 1329743-KTR10EZPF1001
Ultra Librarian 3D Model Ultra Librarian KTR10EZPF1001 CAD Model

Description

The Rohm Semiconductor KTR10EZPF1001 is a chip resistor with a surface mount type.

  • Manufacturer: Rohm Semiconductor
  • Type: Chip Resistor, Surface Mount
  • Package: 0805 (2012 Metric)
  • Size: 0.079” L x 0.049” W (2.00mm x 1.25mm)
  • Resistance: 1kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W, 1/8W
  • Standard Package: 5,000
  • AEC-Q200 Rated: Yes
  • Temperature Range: -55°C ~ 155°C
  • RoHS Compliance: RoHS3
