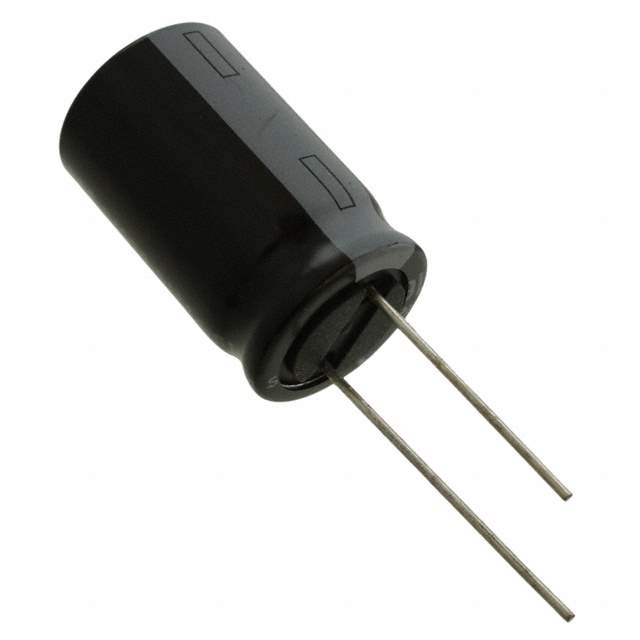

100PX470MEFC16X25 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 880 mA @ 120 Hz
Ripple Current @ High Frequency 1.056 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 600
Win Source Part Number 983639-100PX470MEFC16X25
Ultra Librarian 3D Model Ultra Librarian 100PX470MEFC16X25 CAD Model

Description

The Rubycon PX series aluminum electrolytic capacitors are designed to offer a capacitance of 470 µF and a voltage rating of 100 V.

  • Capacitance: 470 µF
  • Voltage Rating: 100 V
  • Applications: Various general-purpose applications
  • Packaging: Bulk
  • Quantity per Package: 600
  • Tolerance: ±20%
  • Ripple Current: 880 mA @ low frequency and 1.056 A @ high frequency
  • Market Status: Open market
  • ECCN: EAR99
  • Package Shape: Radial, can
